High-performance air discharge tube SPDs with male and female N interfaces that transmit over a wide frequency range of up to 6GHz are ideal for IEEE 802.11a, 5.2-5.8 GHz ISM, UNII, and 3.5 GHz WLL applications, as well as for DC coaxial cable applications such as teleamplifiers and low-noise amplifiers. Typically installed in LPZ 0A-1 and subsequent partitions.

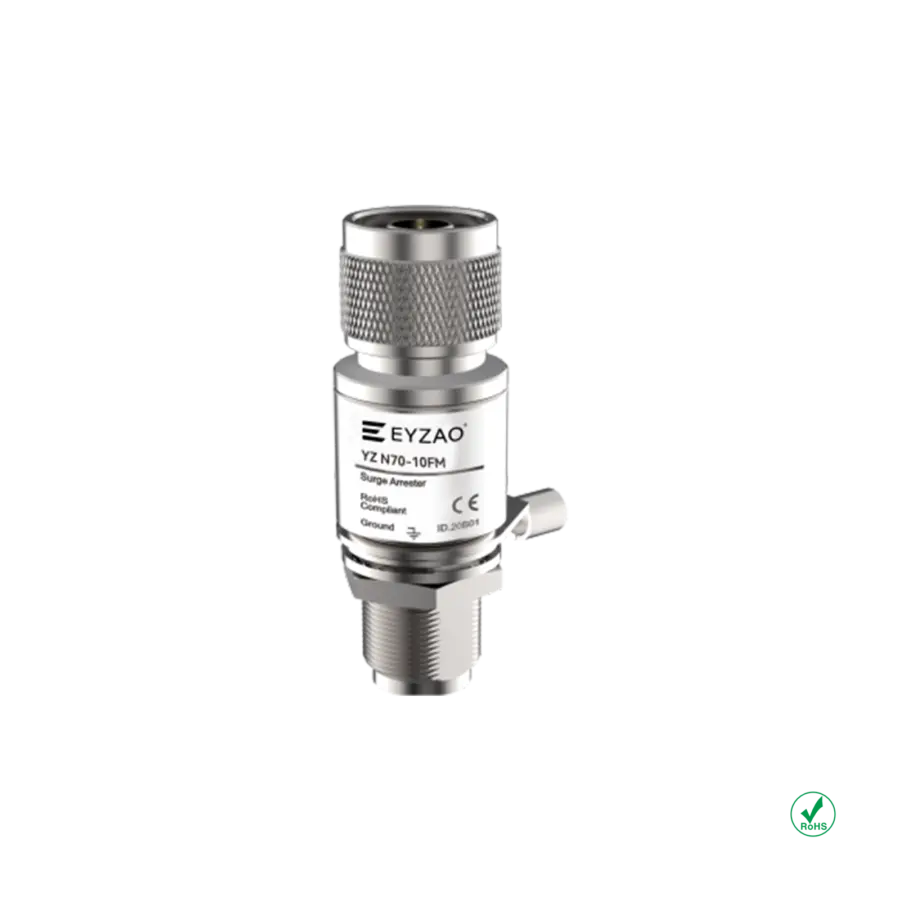

YZ N70-10FM
- Reliable high transmission rates
- Long service life due to superior construction
- High discharge capacity
Get Your Free Quote
We will contact you within 24 hours.
| Part Name | YZ N70-10FM | YZ N135-10FM | YZ N180-10FM |
| Connectors | N Male to N Female Bulkhead | ||
| Freqency Range | d.c. ~ 6 GHz | ||
| Max. continuous operating voltage (UC) | 70 Vdc | 135 Vdc | 180 Vdc |
| Rated load current(IL) | 10A | ||
| Lightning impulse current (10/350µs) (limp) | 1kA | ||
| Nominal discharge current (8/20μs) (In) | 5kA | ||
| Insertion Loss | 0.1 dB Max. | ||
| VSWR | 1.15Max. | ||
| Impedance | 50Ohm | ||
