Class II composite surge protector, compliant with IEC 61643-1/11, EN61643-11 and GB/T 18802.11 standards, suitable for low-voltage AC power distribution systems, for protection of LPZ0B-3 and subsequent partition interfaces, standard DIN rail mounting.

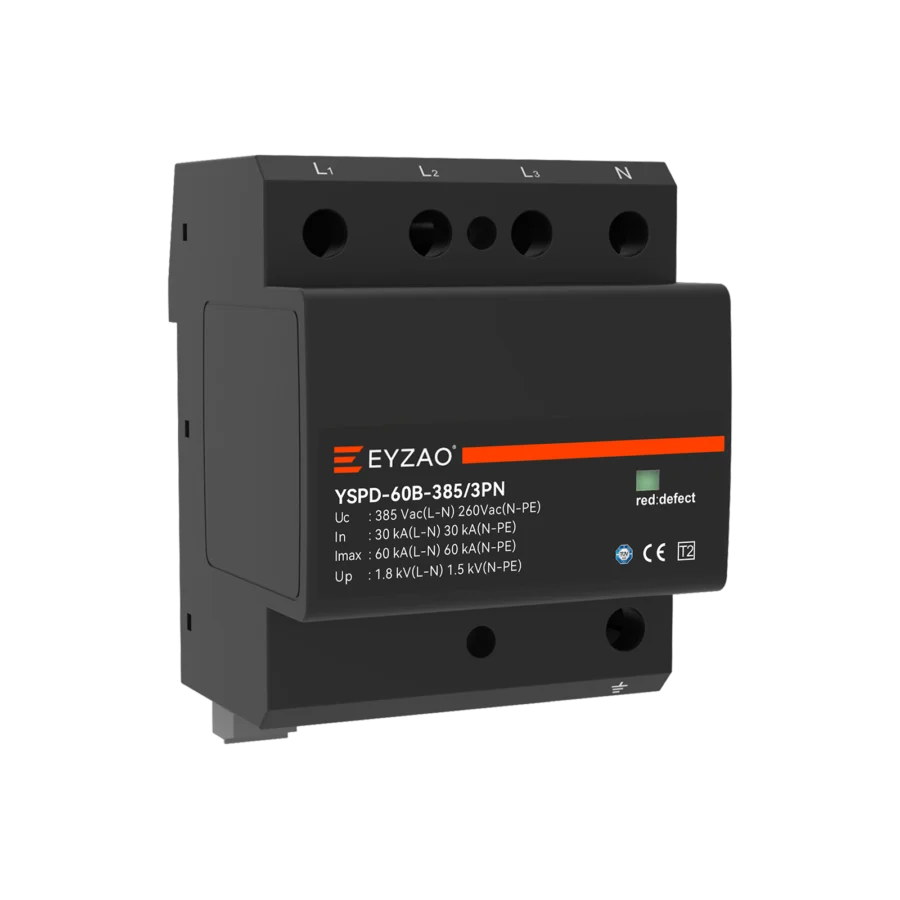

Class II 60kA Composite Surge Protector
- High voltage and high through-current capability
- No continuity current and no leakage current
- Reliable thermal disconnect
- Fault indication telecommunication alarm

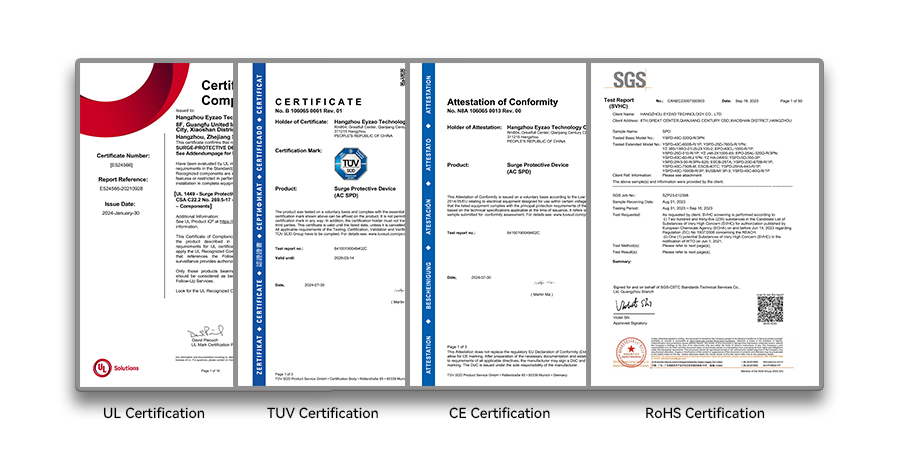

- UL, CSA, TUV, CE, RoHS certification
Get Your Free Quote
We will contact you within 24 hours.
| Product Model | YSPD-60B-385-R |
| Maximum Continuous Operating Voltage(Uc) | 385Vac |
| Nominal discharge current(8/20µs)(In) | 30kA |
| Maximum discharge current(8/20µs)(Imax) | 60kA |
| Voltage protection level(Up) | 1.8kV |
| Selectable poles | 1PN/3PN |
| Product Certification | TUV、 CE、UL、RoHS |
