High-performance 1/4λ SPDs with male and female N interfaces transmit in the specified frequency range of 0.8 GHz to 2.5 GHz, short-circuit in the event of lightning strikes and low-frequency surges, and drain the energy into the earth, and are widely used in the protection of DAS and wireless LAN, etc., and are usually installed in the LPZ0-1A and subsequent subzones.

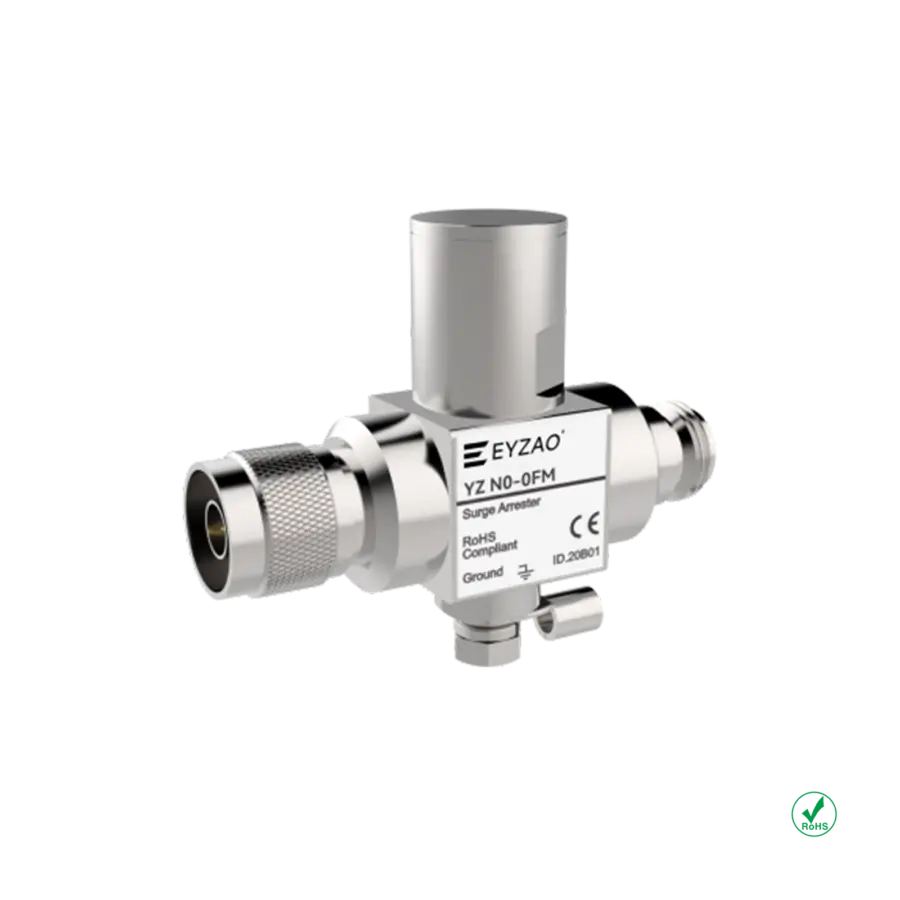

YZ N0-0FM
- Fast response.
- Reliable and high transmission rates.
- Long service life due to superior construction.
- High discharge capacity, maintenance free.
- Dual port protection for easy installation.
Get Your Free Quote
We will contact you within 24 hours.
| Part Name | YZ N0-0FM |
| Connectors | N Male to N Female Bulkhead |
| Frequency Range | 800 ~ 2500 MHz |
| Impedance | 50 Ohm |
| Lightning impulse current (10/350µs) (limp) | 40kA |
| Nominal discharge current (8/20μs) (In) | 80kA |
| Insertion Loss | Max. 0.1dB |
| Max. Transmission Capacity | 2000W |
