Classic SPD for use in internet according to IEEE 802.3atto protect theCAT.5 patch cable and downstream equipment at boundariesfromLPZ1-2 and higher.

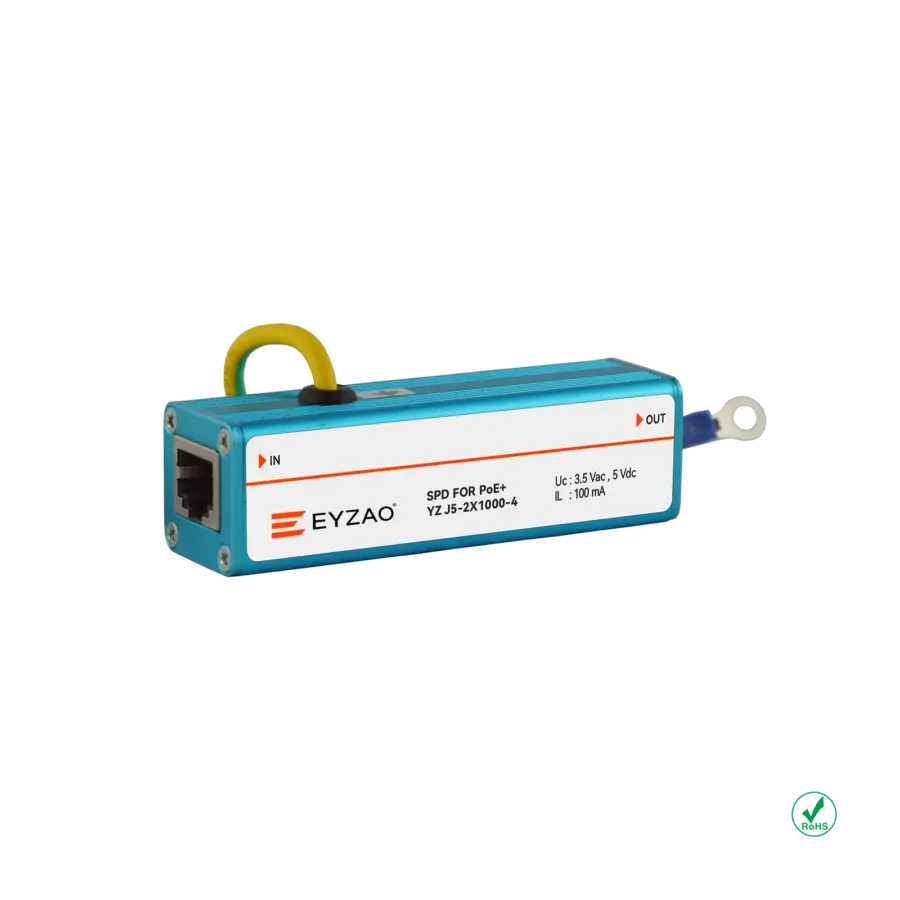

Integrated Ethernet Surge Protector YZ J5-2X1000-4
- Easy to replace
- Low insertion loss
- DIN rail installation
- Fully shielded design
- Protection for all lines
- High discharge capacity
Get Your Free Quote
We will contact you within 24 hours.
| Part Name | YZ J5-2X1000-4 |
| SPD Type | C2, D1 |
| Max. continuous operating voltage (UC) | 3.5Vac / 5 Vdc |
| Nominal discharge current (8/20μs) (In) | 200 A(per line), 2.5 kA (line to PE) |
| Rated load current(IL) | 100A |
| Cut-off Frequency | 250 MHz |
| Connection | RJ45 socket / RJ45 socket |
