DIN rail, compact SPD with slim size and single pair l ine s for pro tec ting high-frequency transmission system at boundaries from LPZ0B-2 and higher.

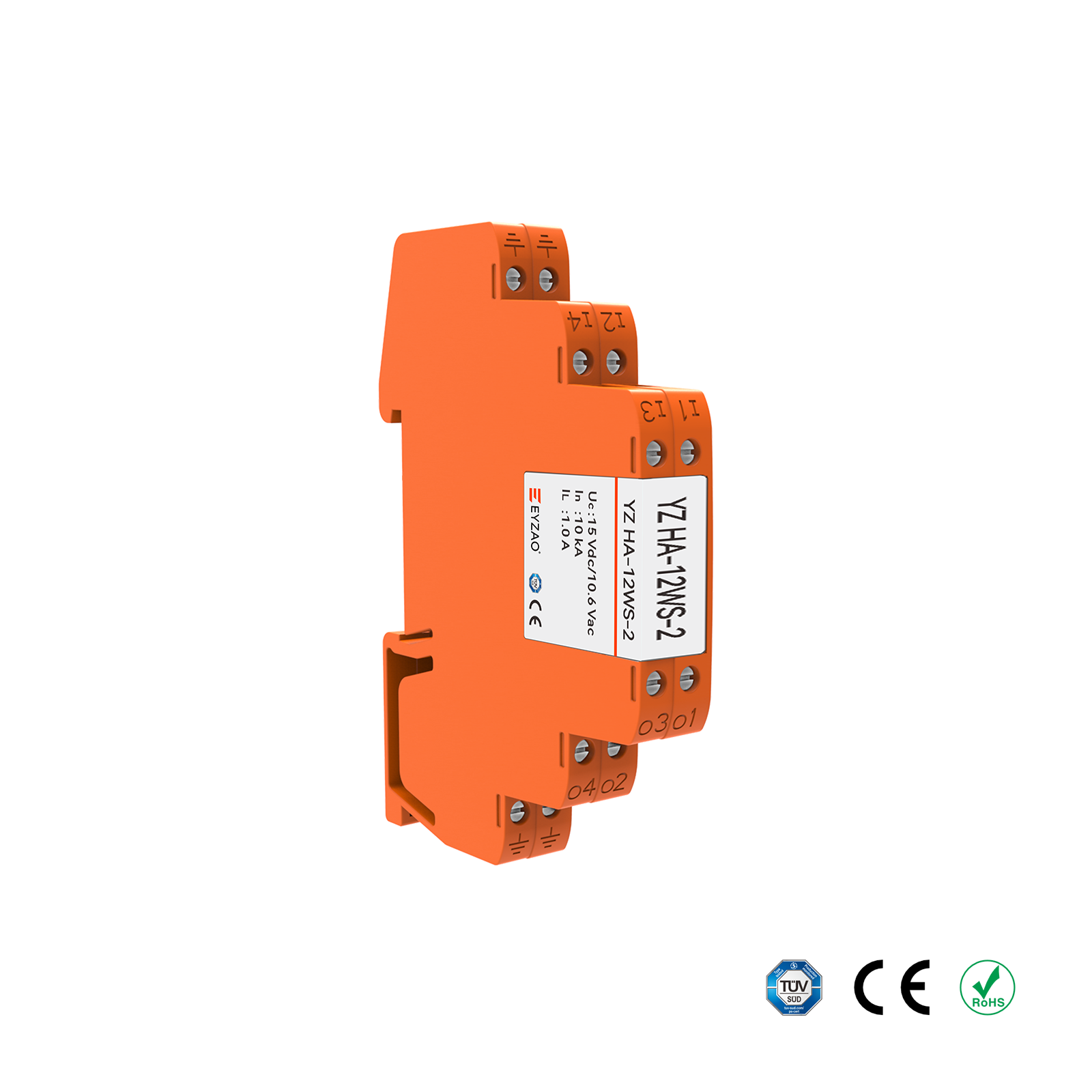

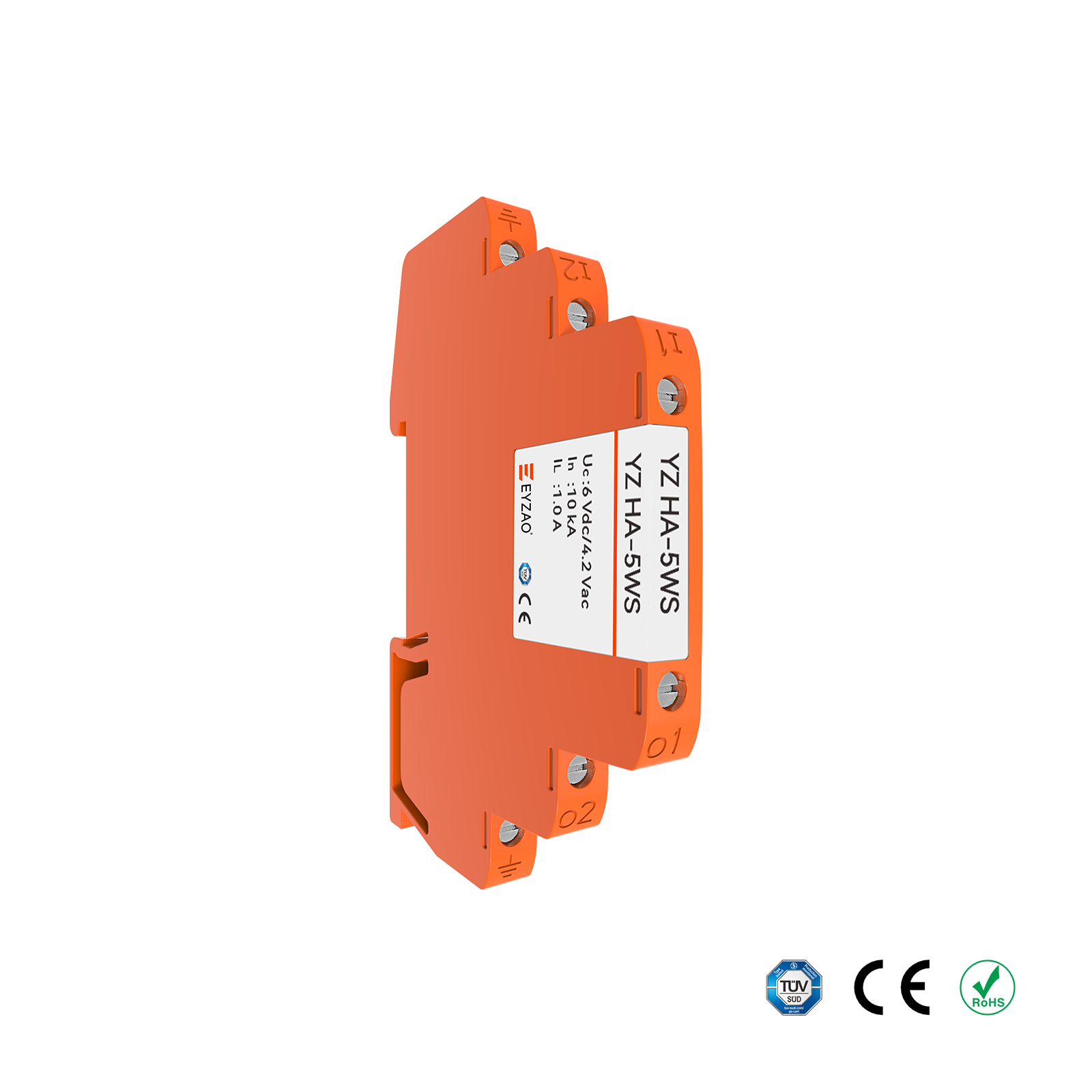

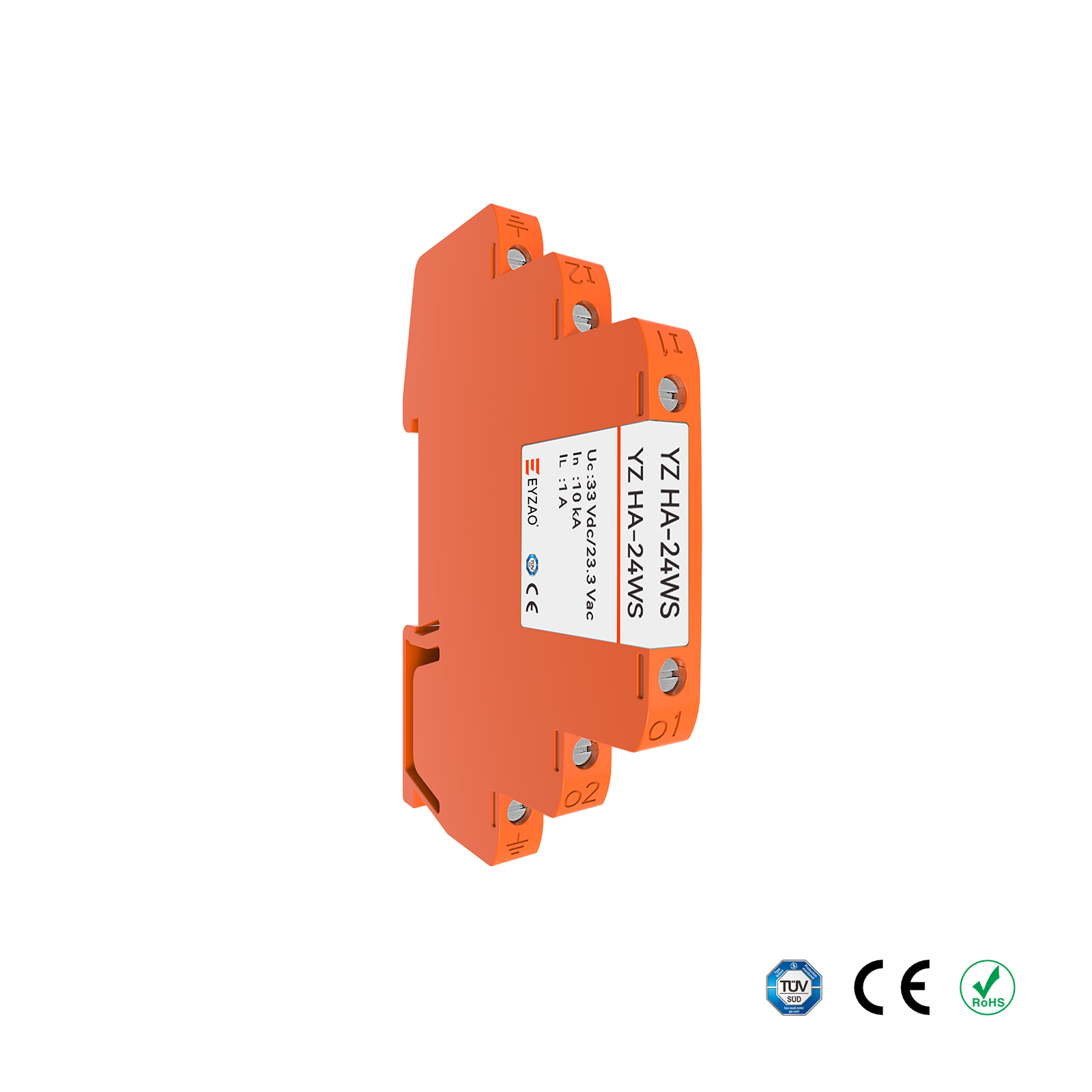

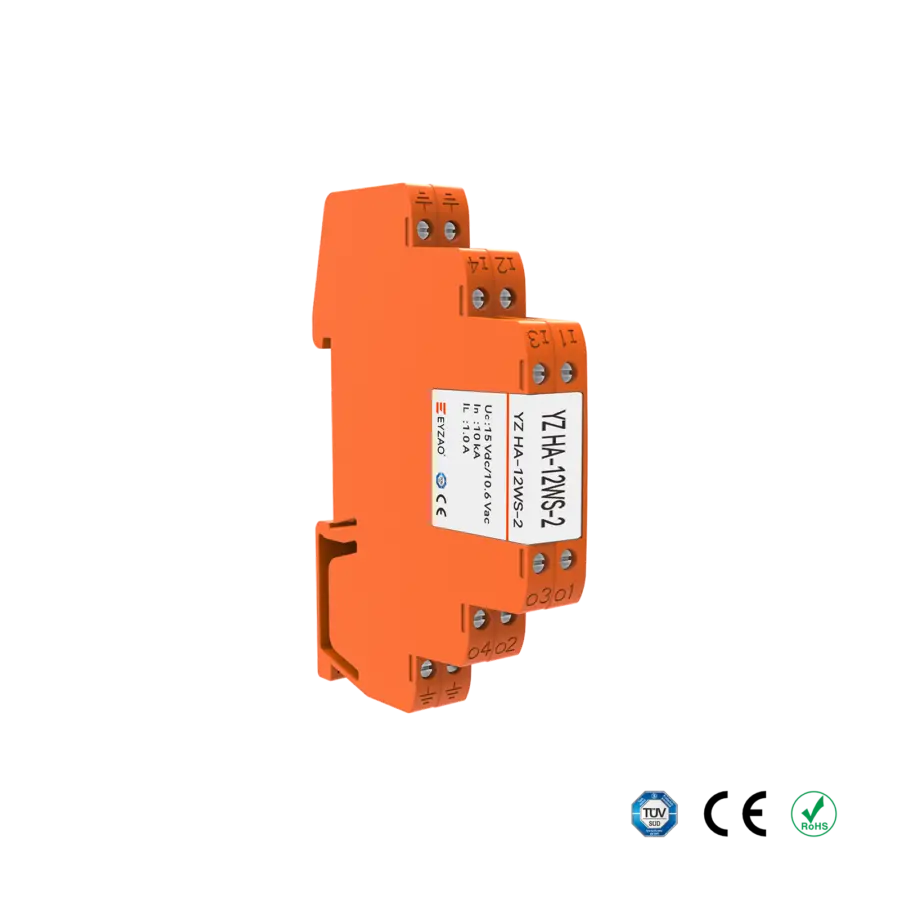

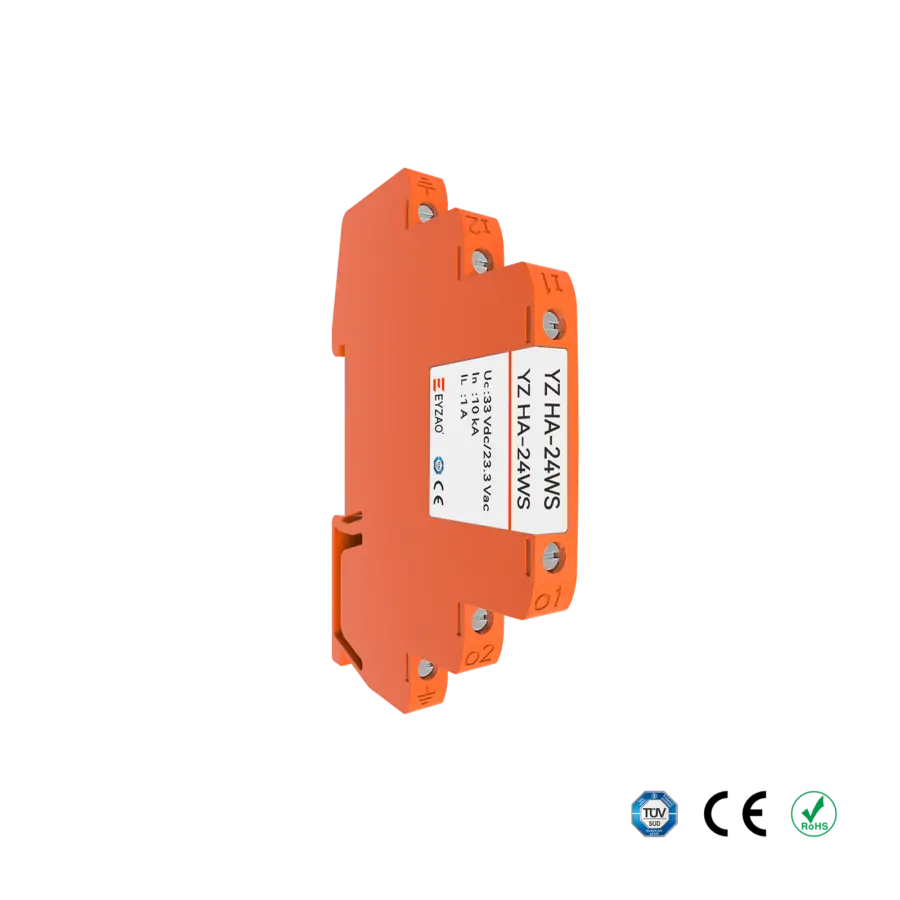

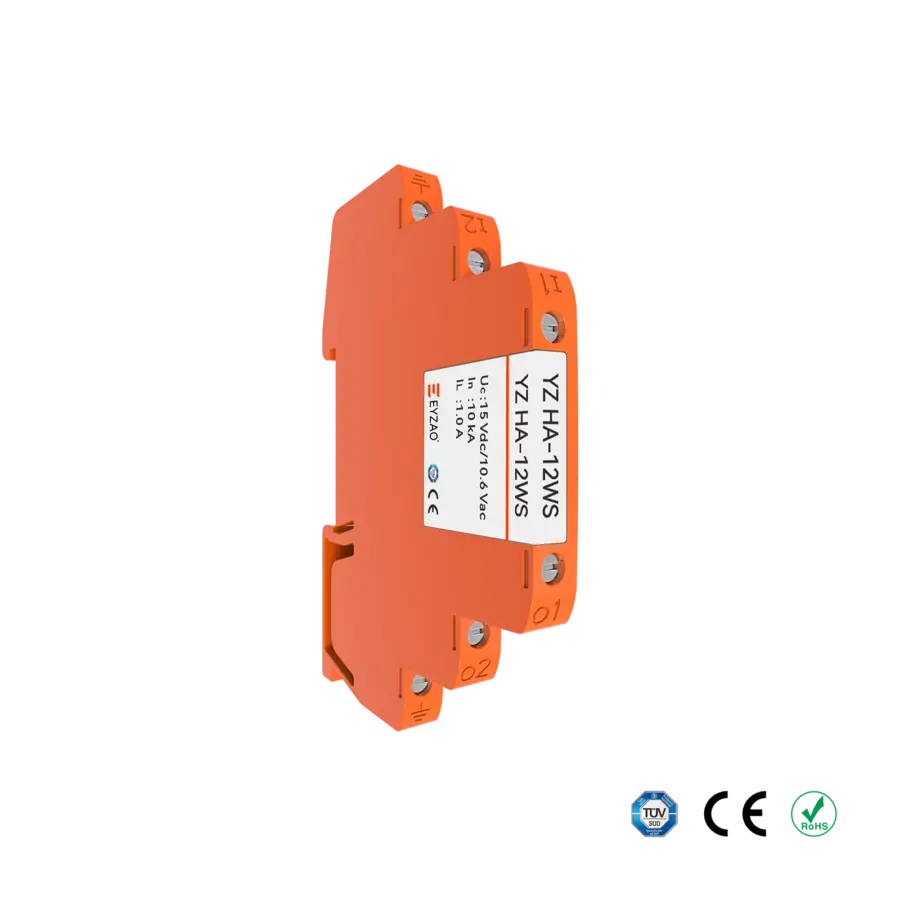

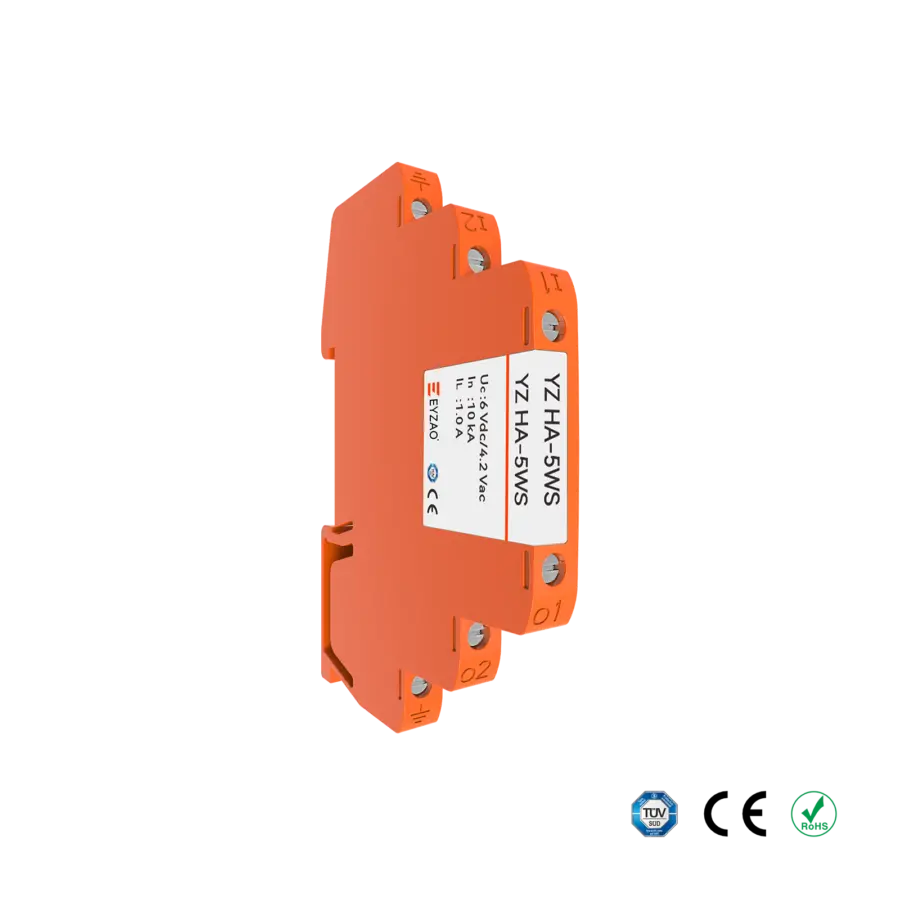

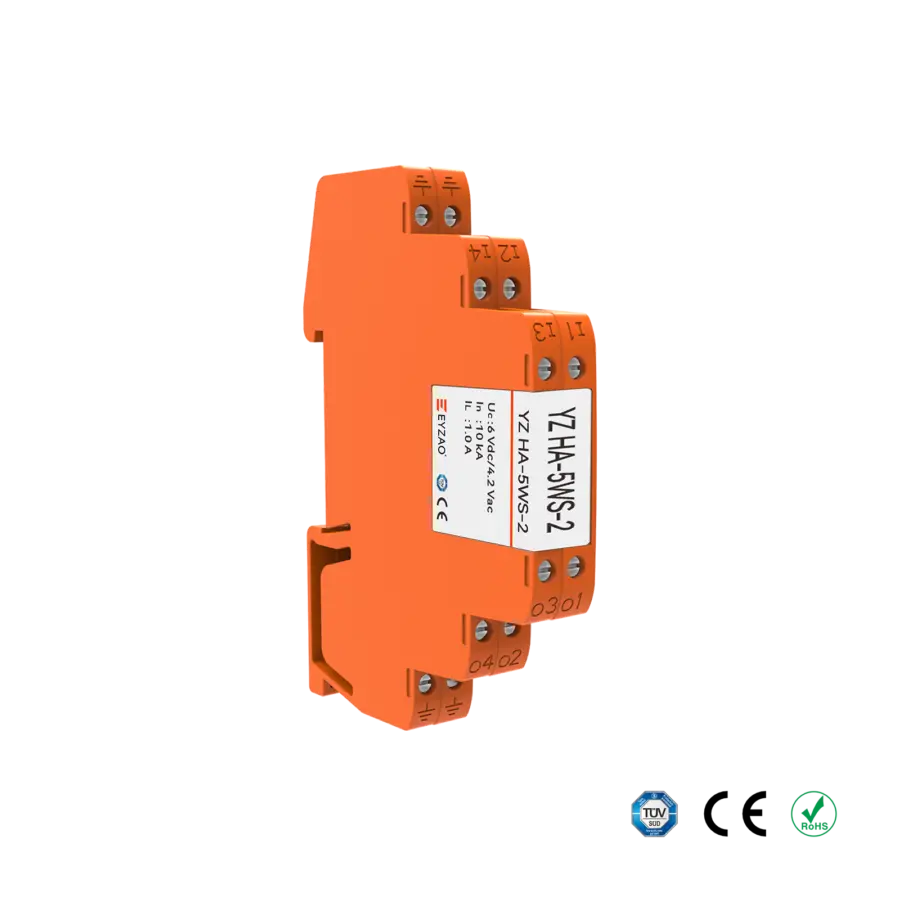

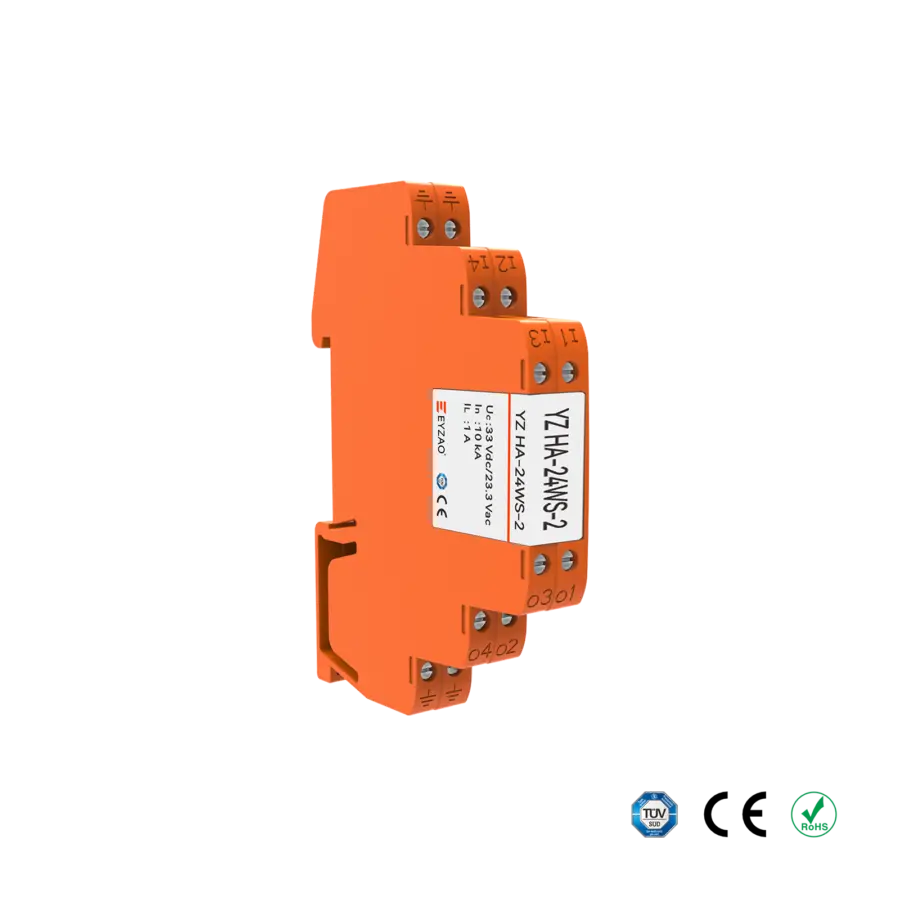

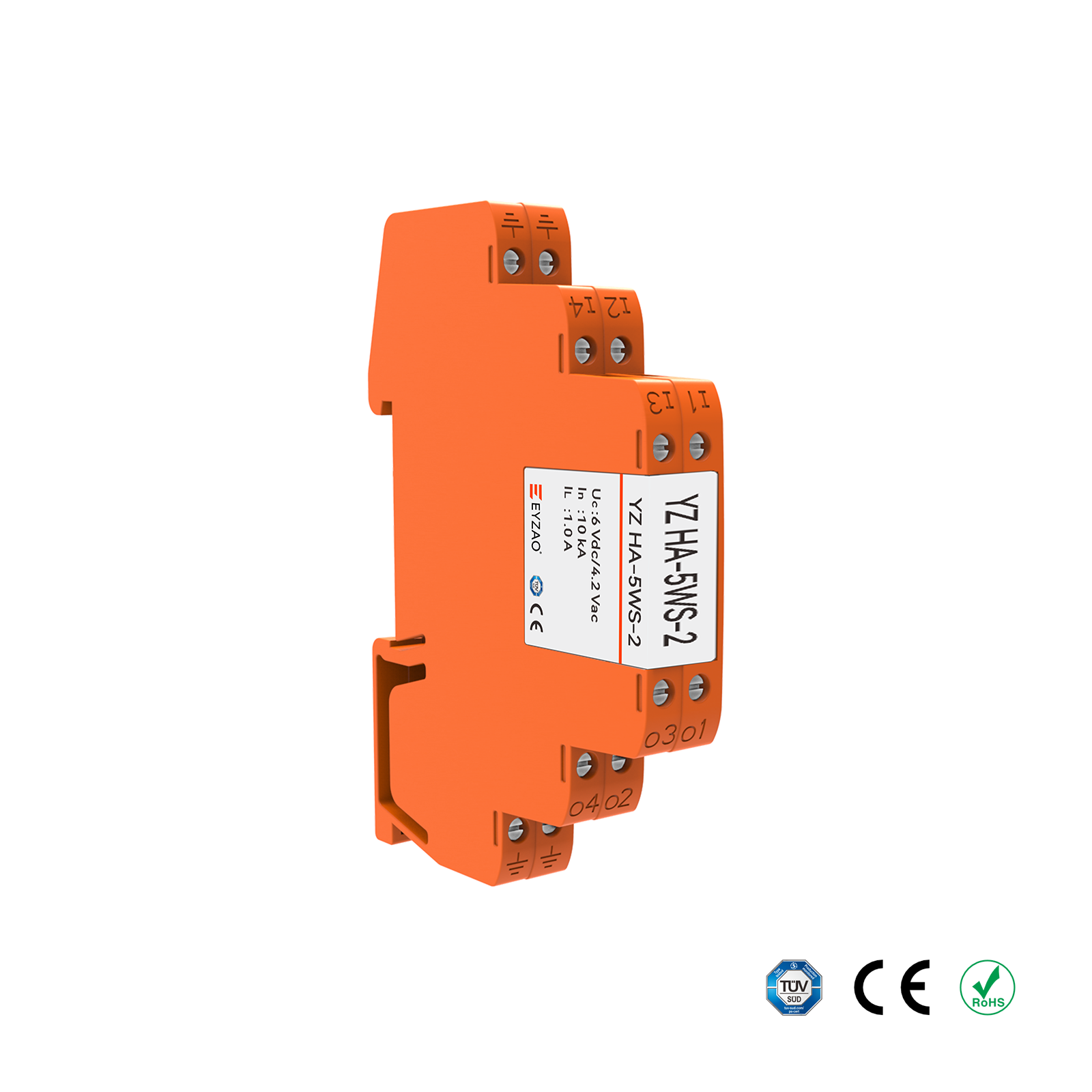

YZ HA-5 12 24WS/YZ HA-5 12 24WS-2
- long lasting
- Integrated module
- Small and ultra-thin
- Low residual pressure
Get Your Free Quote
We will contact you within 24 hours.
| Part Name | YZ HA-5WS | YZ HA-5WS-2 | YZ HA-12WS | YZ HA-12WS-2 | YZ HA-24WS | YZ HA-24WS-2 |
| Nominal Voltage (UN ) | 5V | 12V | 24V | |||
| Max. continuous operating d.c. voltage (Uc) | 6Vdc | 15Vdc | 33Vdc | |||
| Max. continuous operating d.c. voltage (Uc) | 4.2Vdc | 10.6Vdc | 23.3Vdc | |||
| Lightning impulse current (10/350µs) (limp) | 2kA | |||||
| Nominal discharge current (8/20μs) (In) | 10kA / 20kA | |||||
| Transition rate | 100MHz | |||||
| Approval | TUV、 CE、RoHS | |||||
Signal Surge Protector:
