PCB on board, Type1+2 /ClassI+II multipurpose single-pole SPD for use in PV DC system at boundaries from LPZ0B-1 and higher

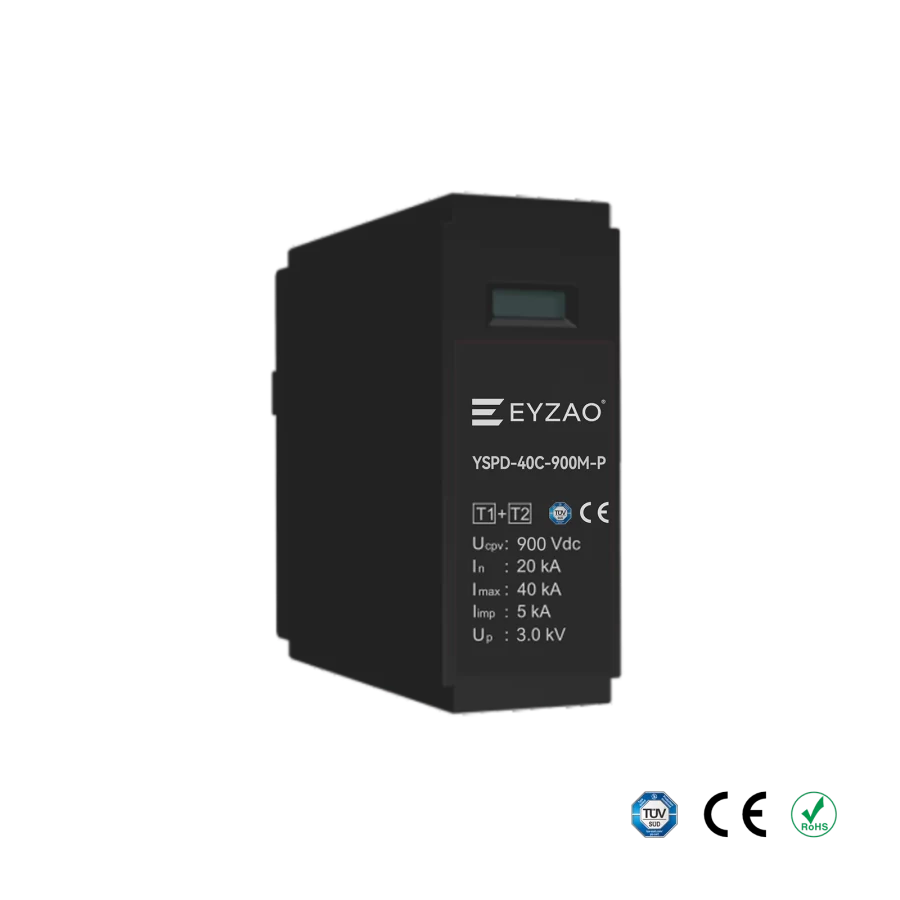

YSPD-40C-900M-P
- Ultra-small size saves space
- Can directly protect the terminal device
- Reliable temperature control trip technology
- The residual low pressure protection eect is good
Get Your Free Quote
We will contact you within 24 hours.

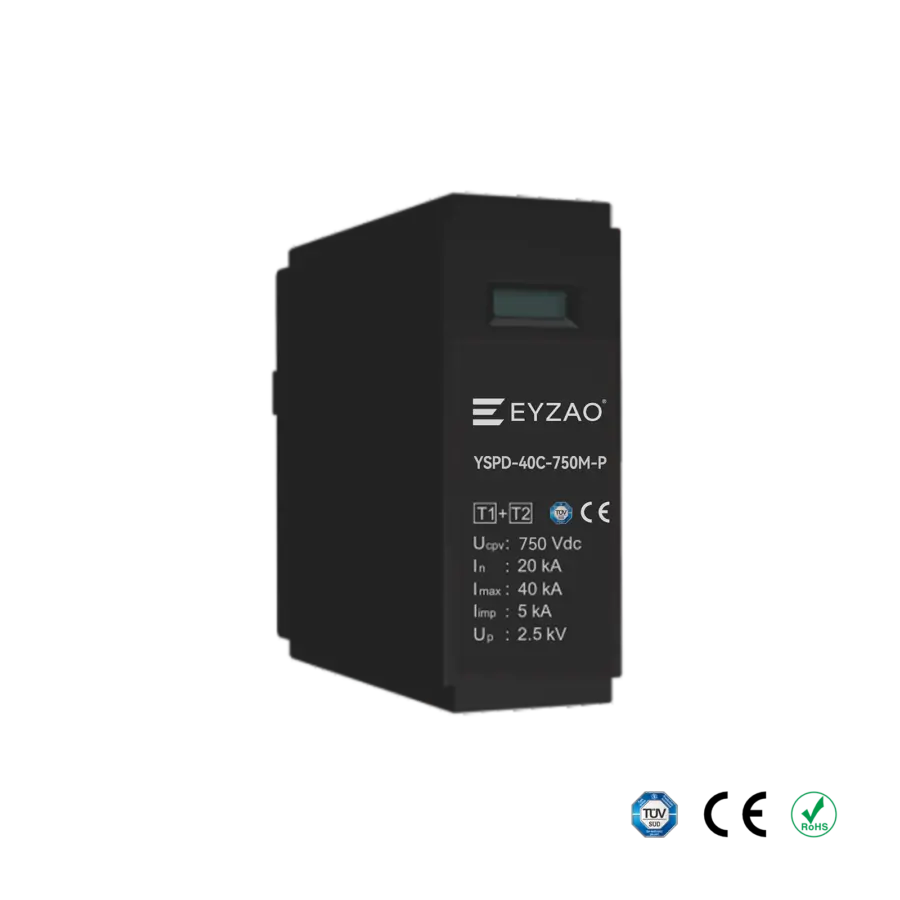

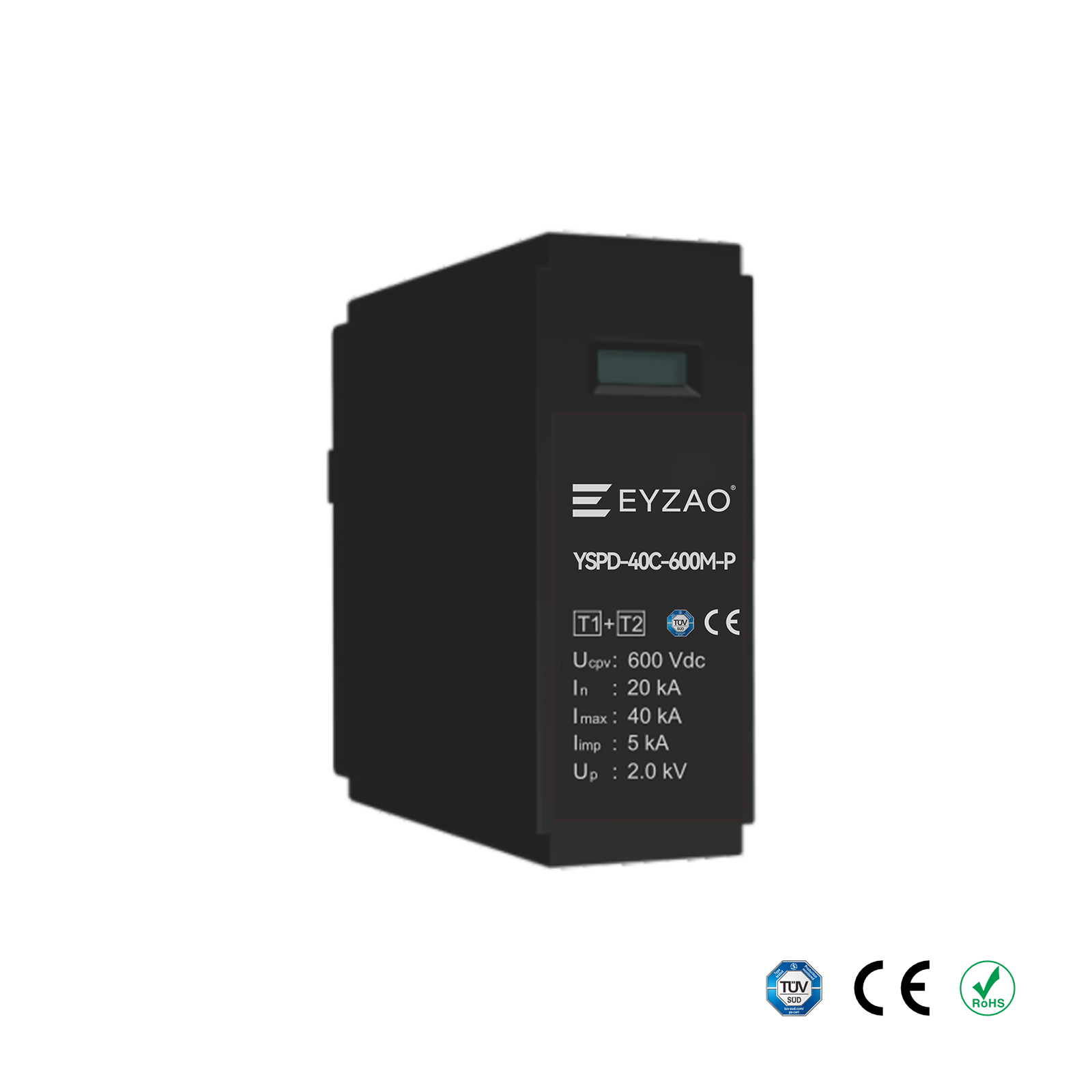

| PCB On-Board SPD Models | YSPD-40C-600M-P | YSPD-40C-750M-P | YSPD-40C-900M-P |
| Max. continuous operating d.c. voltage(Ucpv) | 600Vdc | 750Vdc | 900Vdc |
| Nominal discharge current (8/20μs) (In) | 20kA | ||
| Max. discharge current (8/20µs) (lmax) | 40kA | ||
| Lightning impulse current (10/350µs) (limp) | 5kA | 3kA | 2kA |
| Voltage protection level (Up) | 2.0kV | 2.5kV | 3.0kV |
| Sho-circuit withstand capacity(Iscpv) | 1000A | ||
| Approvals | TUV, CE, RoHS | ||
