PCB on board, Type 2 /Class II multipurpose single-pole compact SPD for use in PV DC system at boundaries from LPZ0B-2 and higher.

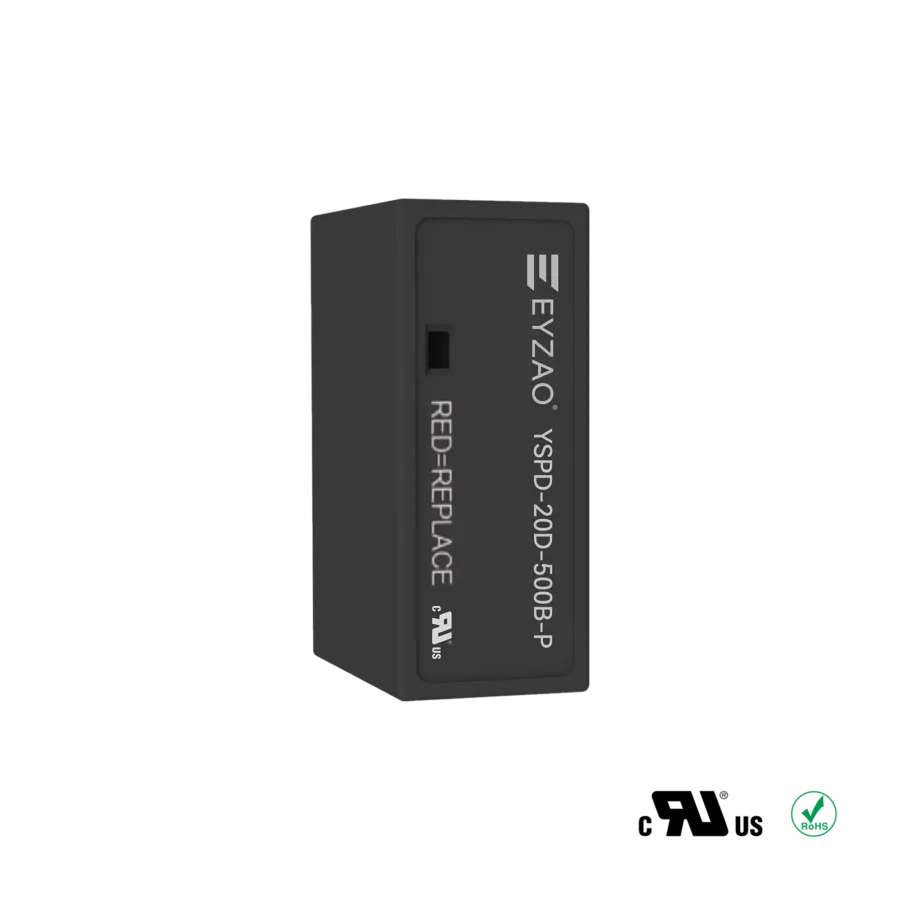

YSPD-20D-500B
- Ultra-small size saves space
- Can directly protect the terminal device
- Reliable temperature control trip technology
- The residual low pressure protection eect is good
Get Your Free Quote
We will contact you within 24 hours.

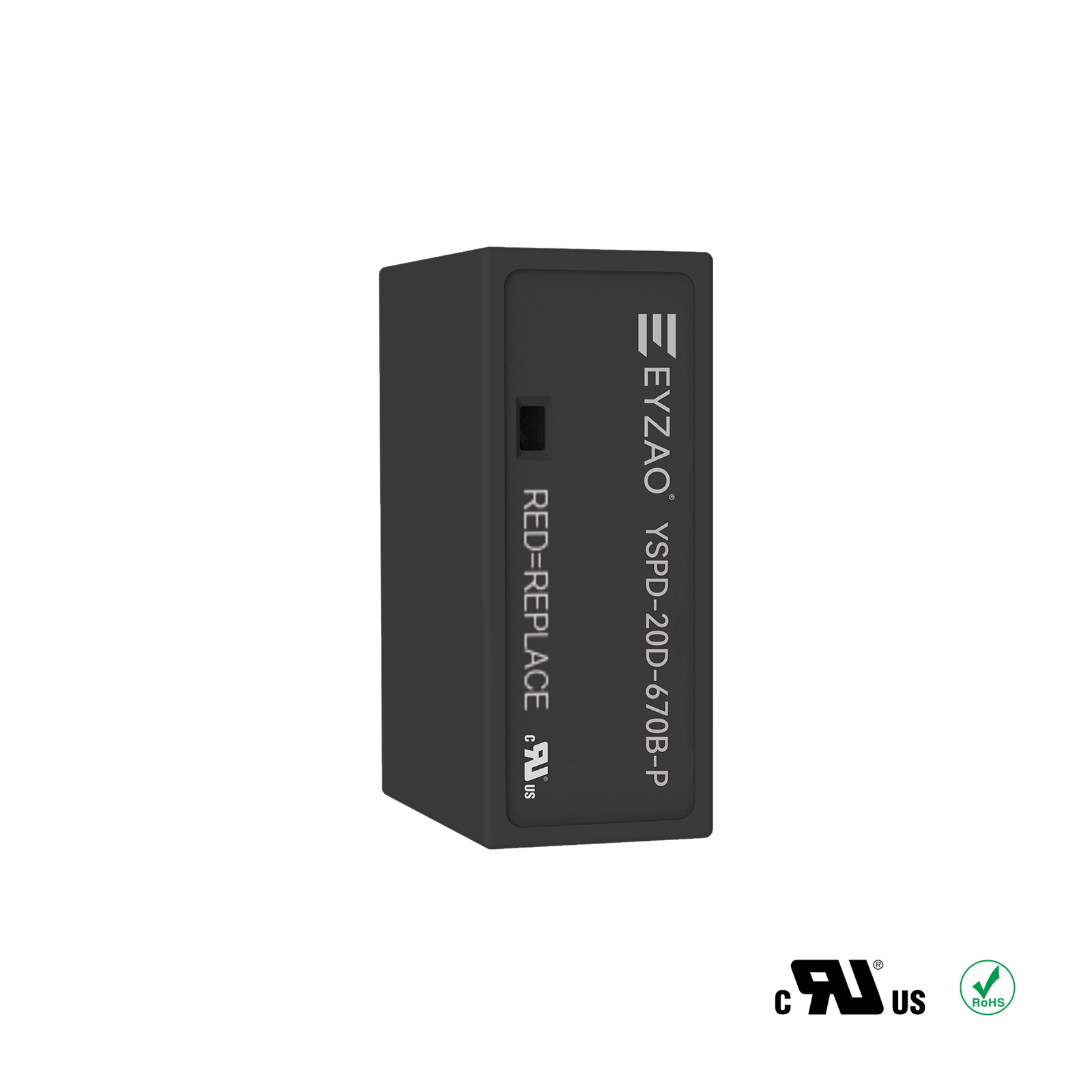

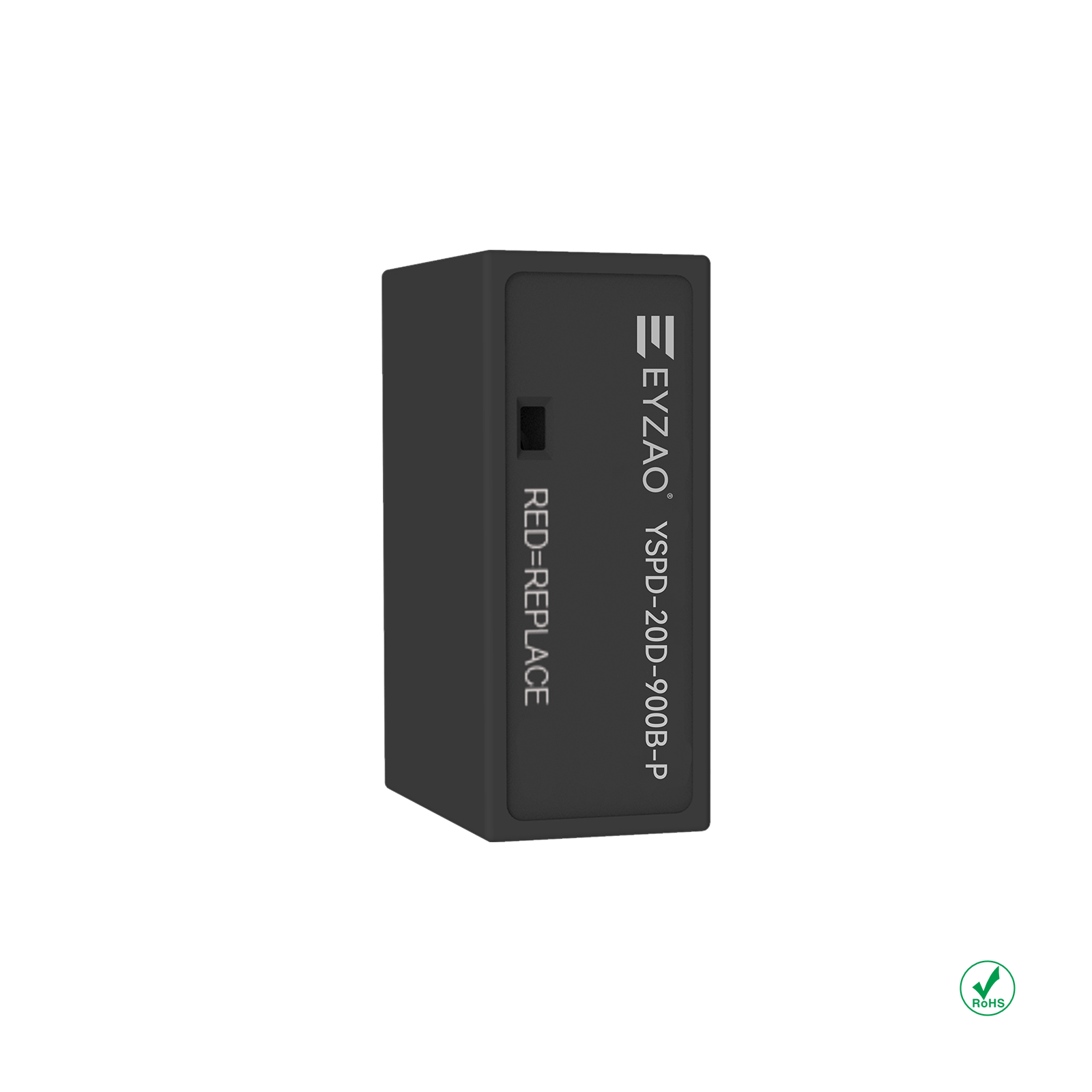

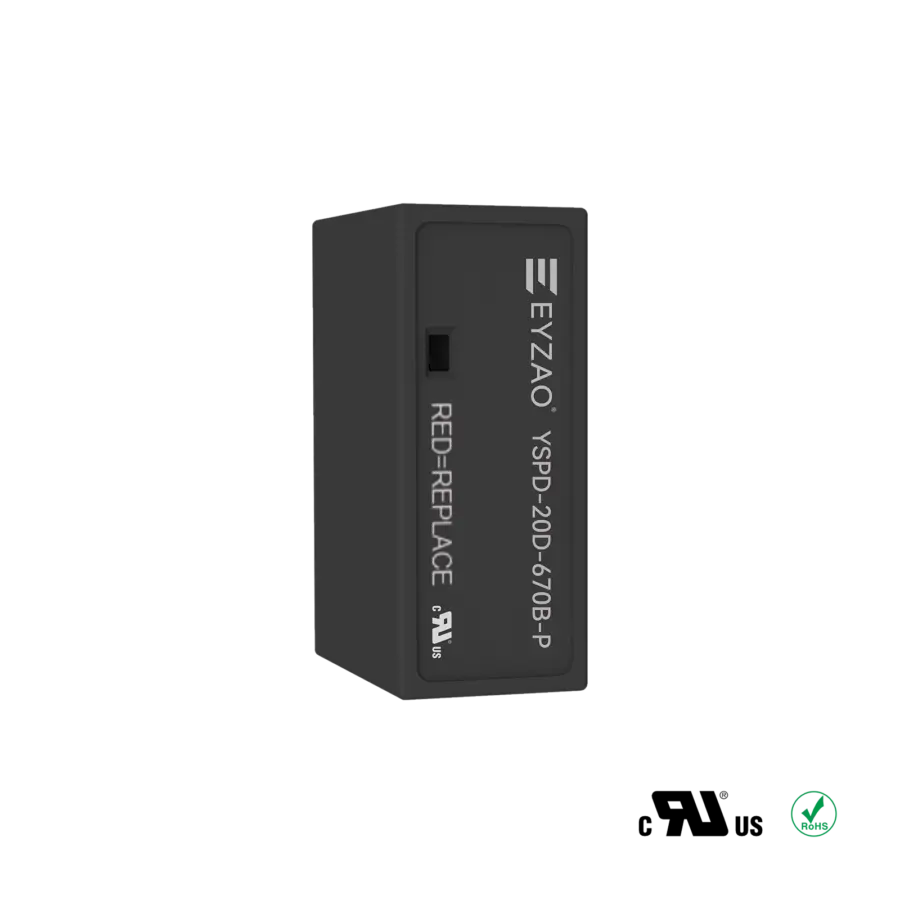

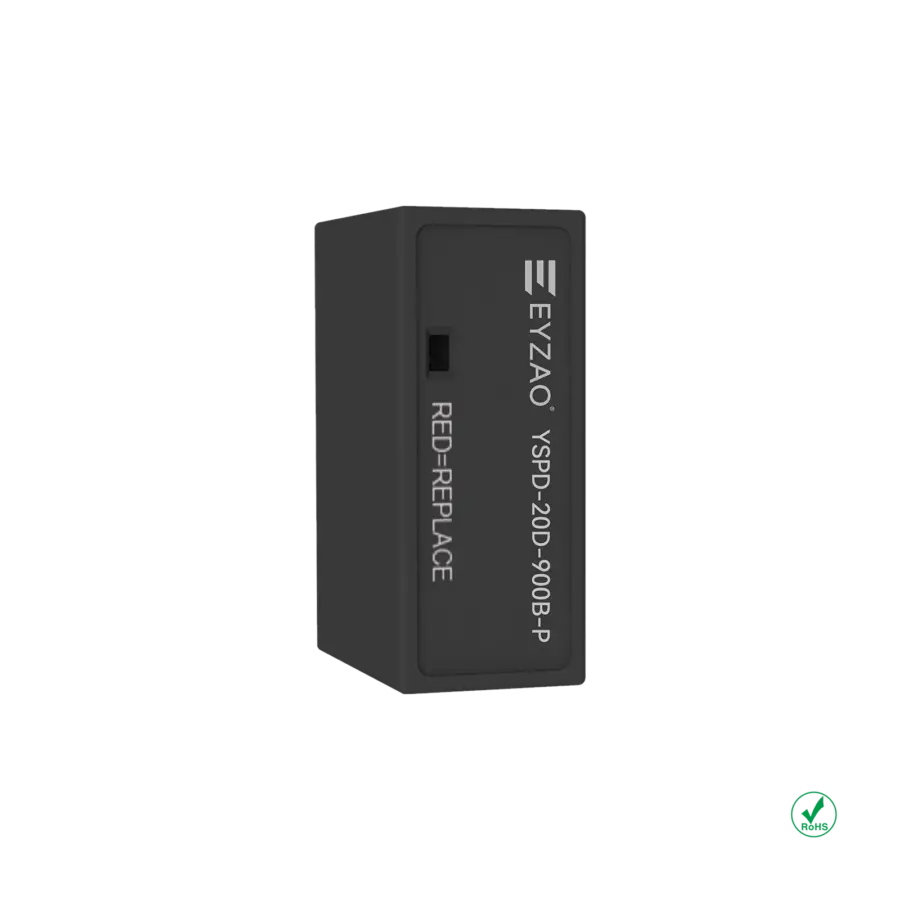

| PCB On-Board SPD Models | YSPD-20D-500B-P | YSPD-20D-670B-P | YSPD-20D-900B-P |
| Max. continuous operating d.c. voltage(Ucpv) | 385Vac /500Vdc | 510Vac /670Vdc | 760Vac /900Vdc |
| Nominal discharge current (8/20μs) (In) | 10kA | ||
| Max. discharge current (8/20µs) (lmax) | 20kA | ||
| Voltage protection level (Up) | 1.5kV | 1.8kV | 2.8kV |
| Sho-circuit withstand capacity(Iscpv) | 1000A | ||
| Approvals | UL, CSA,RoHS | RoHS | |
