PCB on board, Type 1+2 /Class I+II multipurpose single-pole SPD with anti-vibration pluggable module for use in PV DC system atboundaries from LPZ0B-1 and higher.

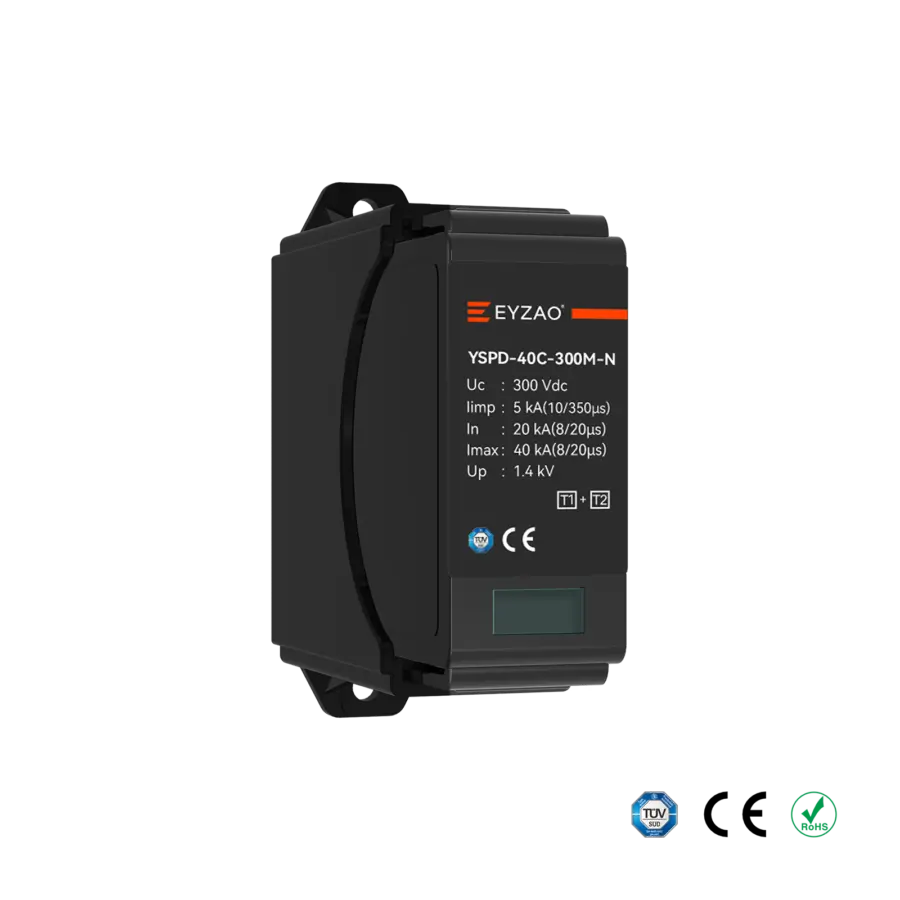

YSPD-40C-300M-N
- Ultra-small size saves space
- Can directly protect the terminal device
- Reliable temperature control trip technology
- The residual low pressure protection eect is good
Get Your Free Quote
We will contact you within 24 hours.

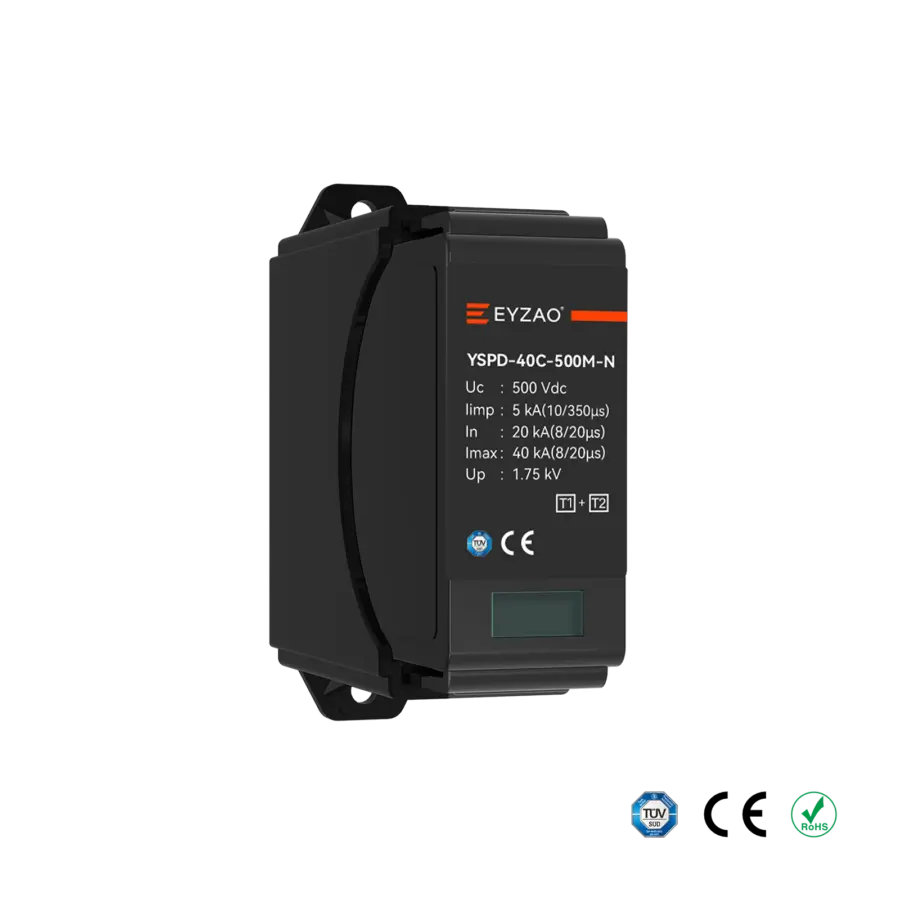

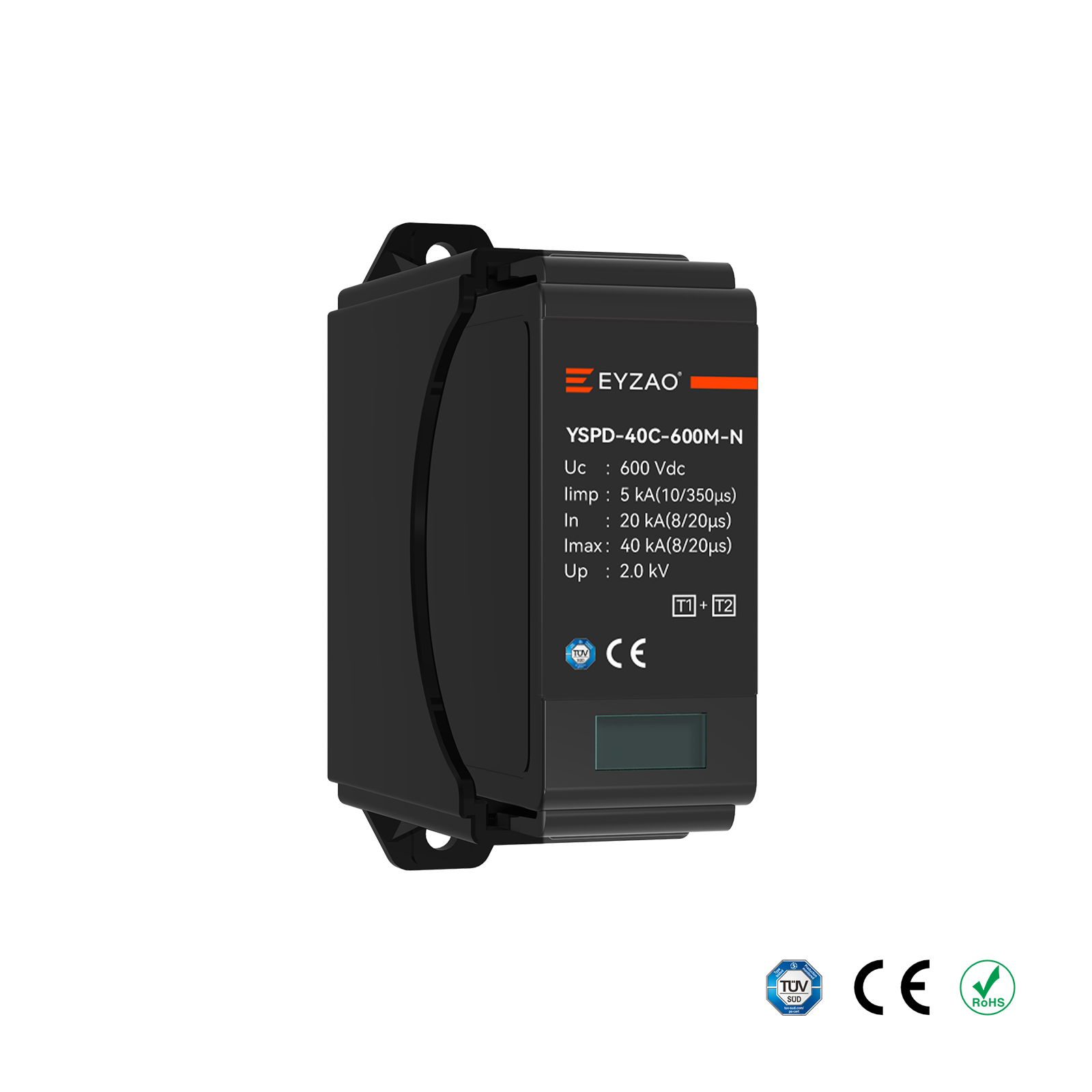

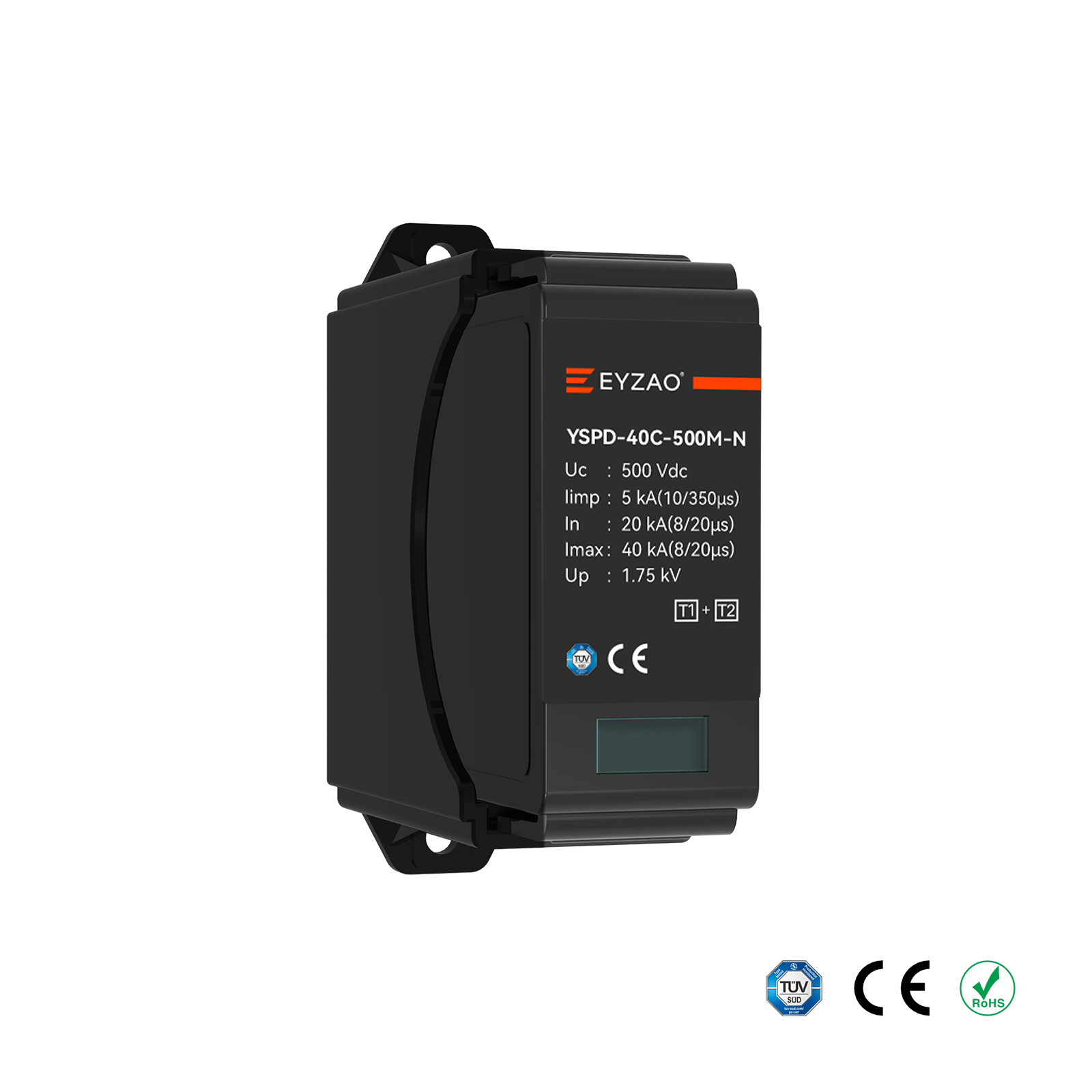

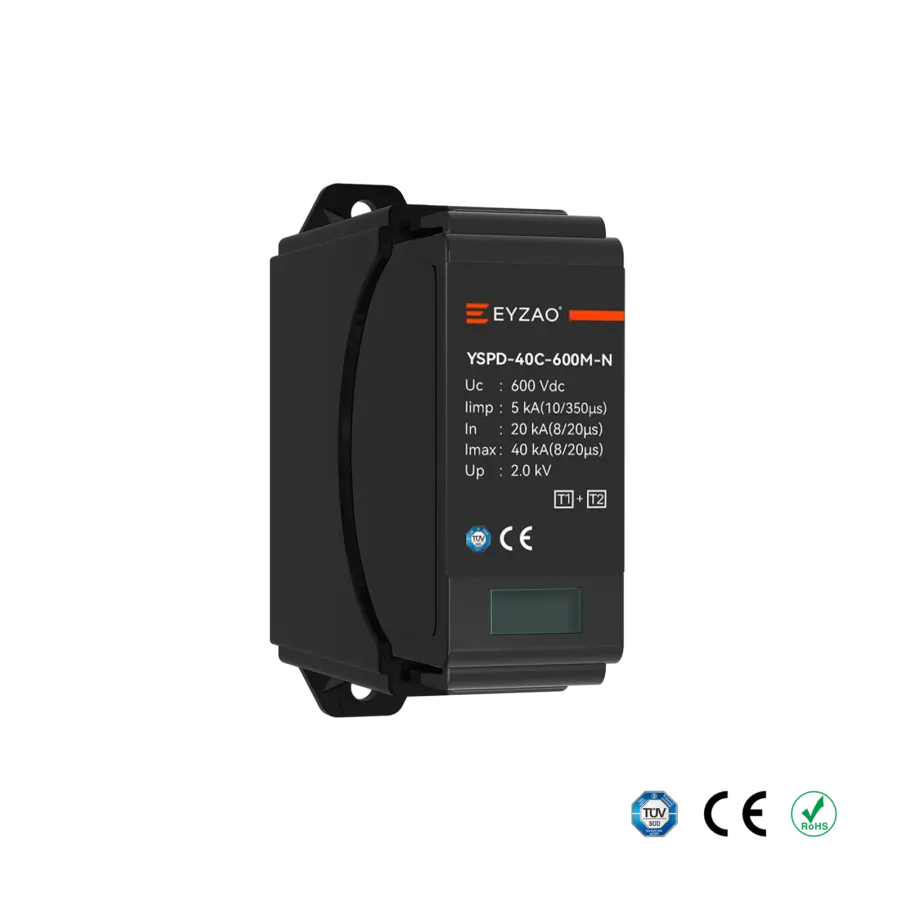

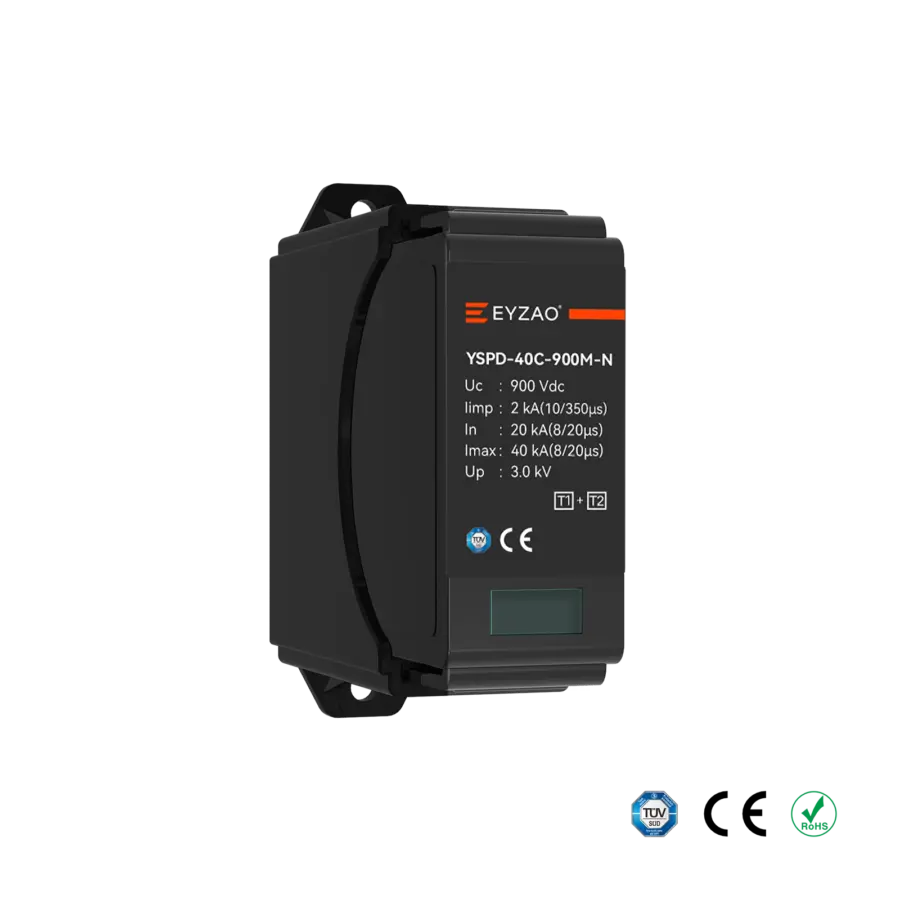

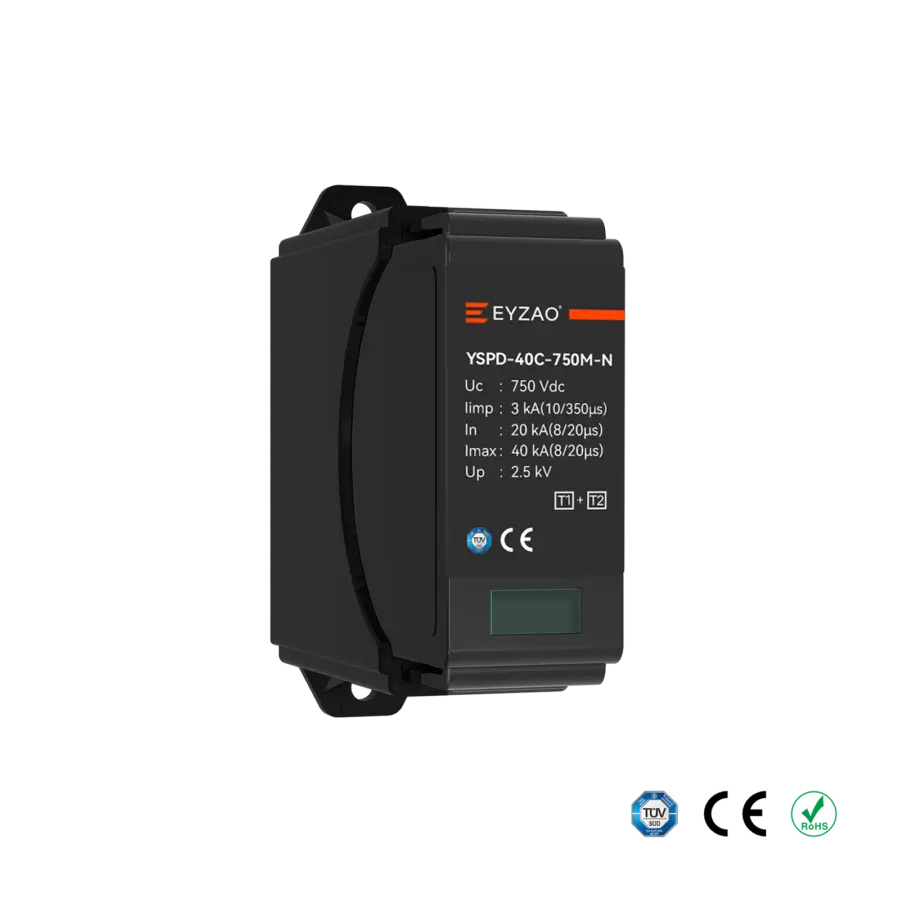

| PCB On-Board SPD Models | YSPD-40C-300M-N | YSPD-40C-500M-N | YSPD-40C-600M-N | YSPD-40C-750M-N | YSPD-40C-900M-N |
| Max. continuous operating d.c. voltage(Ucpv) | 300Vdc | 500Vdc | 600Vdc | 750Vdc | 900Vdc |
| Nominal discharge current (8/20μs) (In) | 20kA | ||||
| Max. discharge current (8/20µs) (lmax) | 40kA | ||||
| Lightning impulse current (10/350µs) (limp) | 5kA | 3kA | 2kA | ||
| Voltage protection level (Up) | 1.4kV | 1.75kV | 2.0kV | 2.5kV | 3.0kV |
| Sho-circuit withstand capacity(Iscpv) | 1000A | ||||
| Approvals | TUV, CE,RoHS | ||||
