1+2/I+II class composite surge protector, in accordance with IEC/EN 61643-11, UL 1449 and GB/T 18802.11 standards, suitable for low-voltage AC power distribution systems, for the protection of LPZ0B-2 and subsequent partition interfaces, with a standard DIN rail mounting.

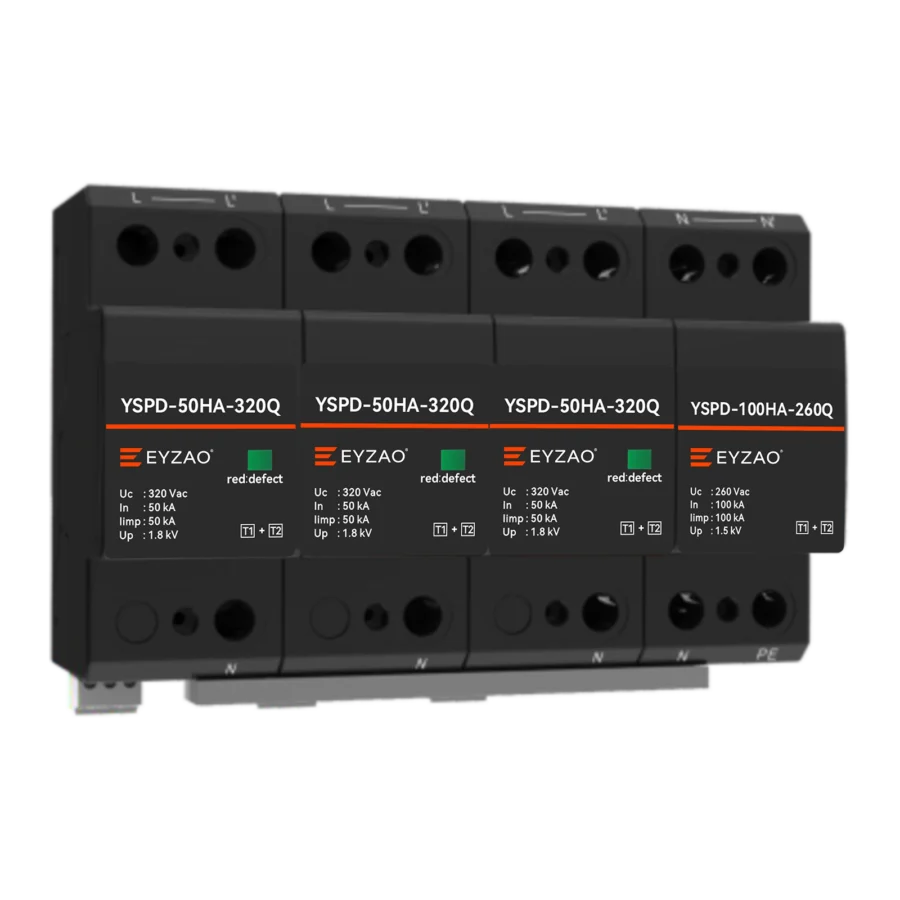

1+2 Level 50kA Composite Surge Protector
- Main circuit tripping is safer
- Energy automatic matching type
- No freewheeling no leakage current
- Fault indication Remote signal alarm
- RoHS certification
Get Your Free Quote
We will contact you within 24 hours.
| Surge Model | YSPD-50HA-320Q-R/3PN |
| Maximum Continuous Operating Voltage (Uc) | 320Vac |
| Nominal discharge current (8/20 µs)(In) | 50kA |
| Lightning inrush current (10/350 µs)(Iimp) | 50kA |
| Voltage protection level (Up) | 1.8 kV |
| Selectable poles |
3PN |
| Approvals | RoHS |
