Class 1+2/I+II composite surge protector in accordance with IEC/EN 61643-11, UL 1449 and GB/T 18802.11 for low-voltage AC power distribution systems, transformers,generators, wind and photovoltaic power generation systems for the protection of the LPZ0B-2 and subsequent zoning interfaces, with standard DIN rail mounting.
1+2 Level 15kA Composite Surge Protector
- Main circuit tripping is safer
- Energy automatic matching type
- No freewheeling no leakage current
- Fault indication Remote signal alarm
- UL, CSA, TUV, CE, RoHS, CQC Certification
Get Your Free Quote
We will contact you within 24 hours.

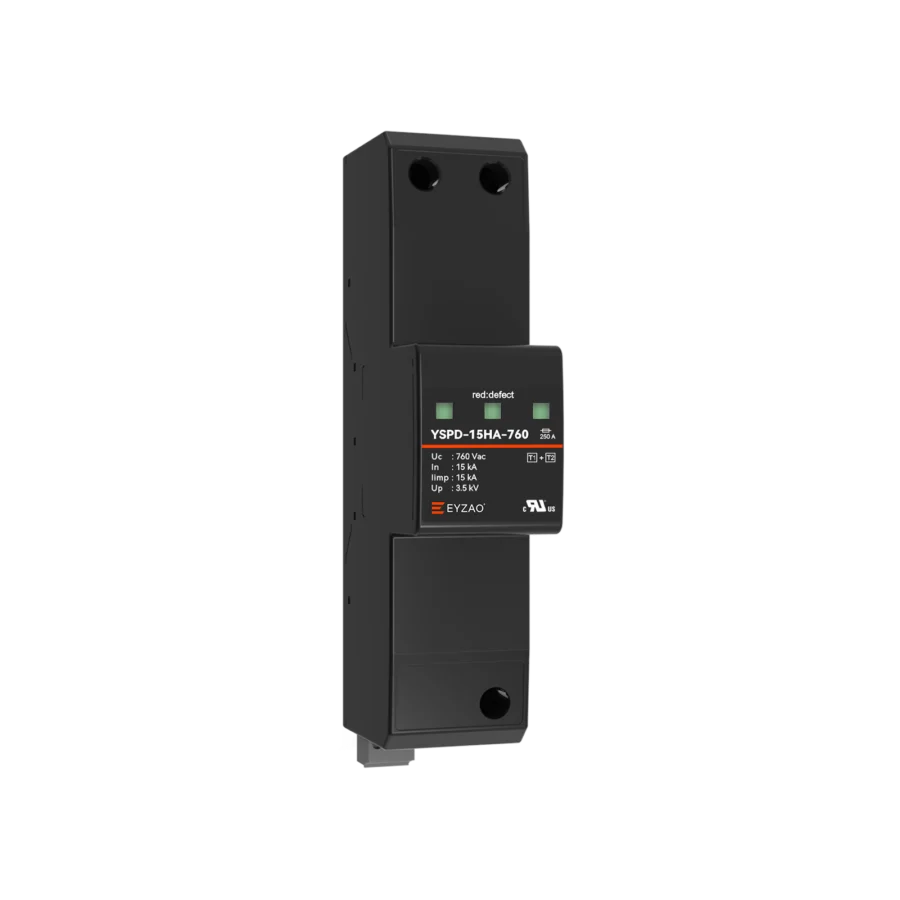

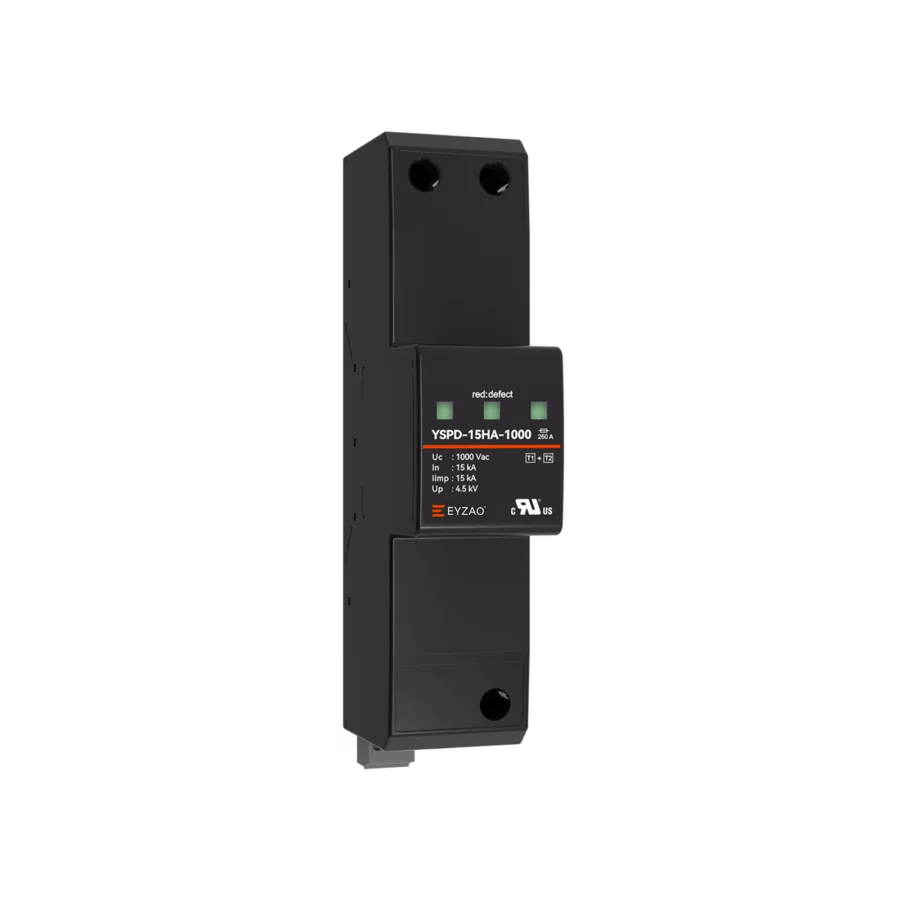

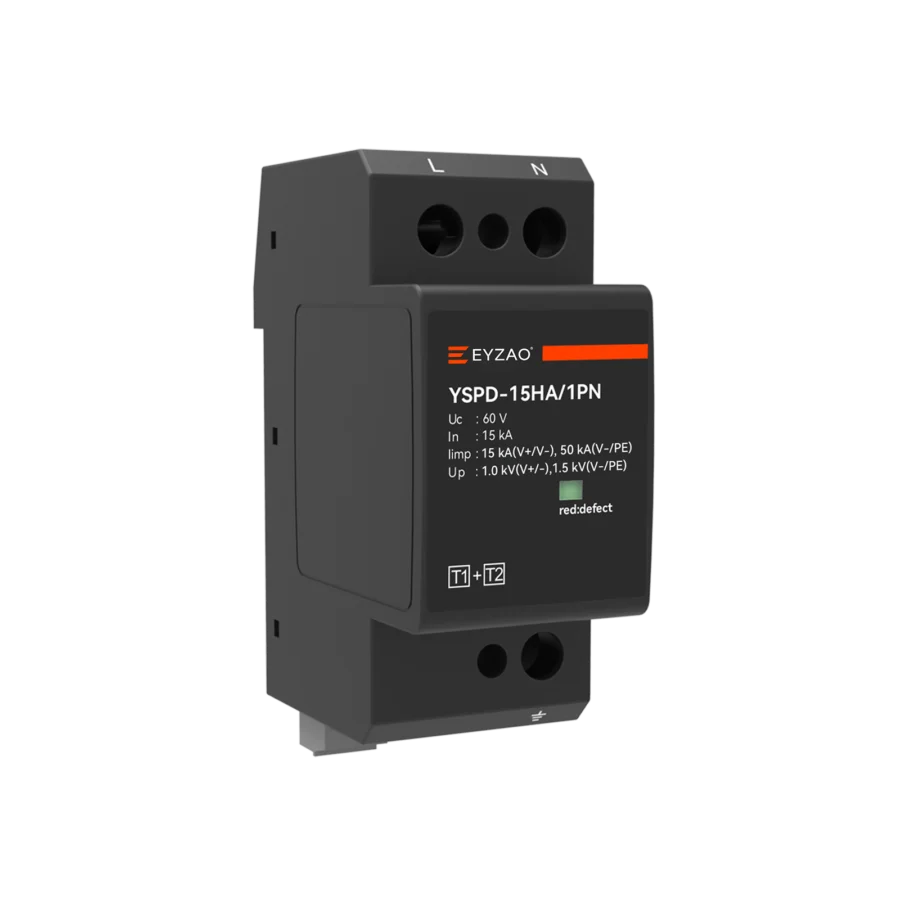

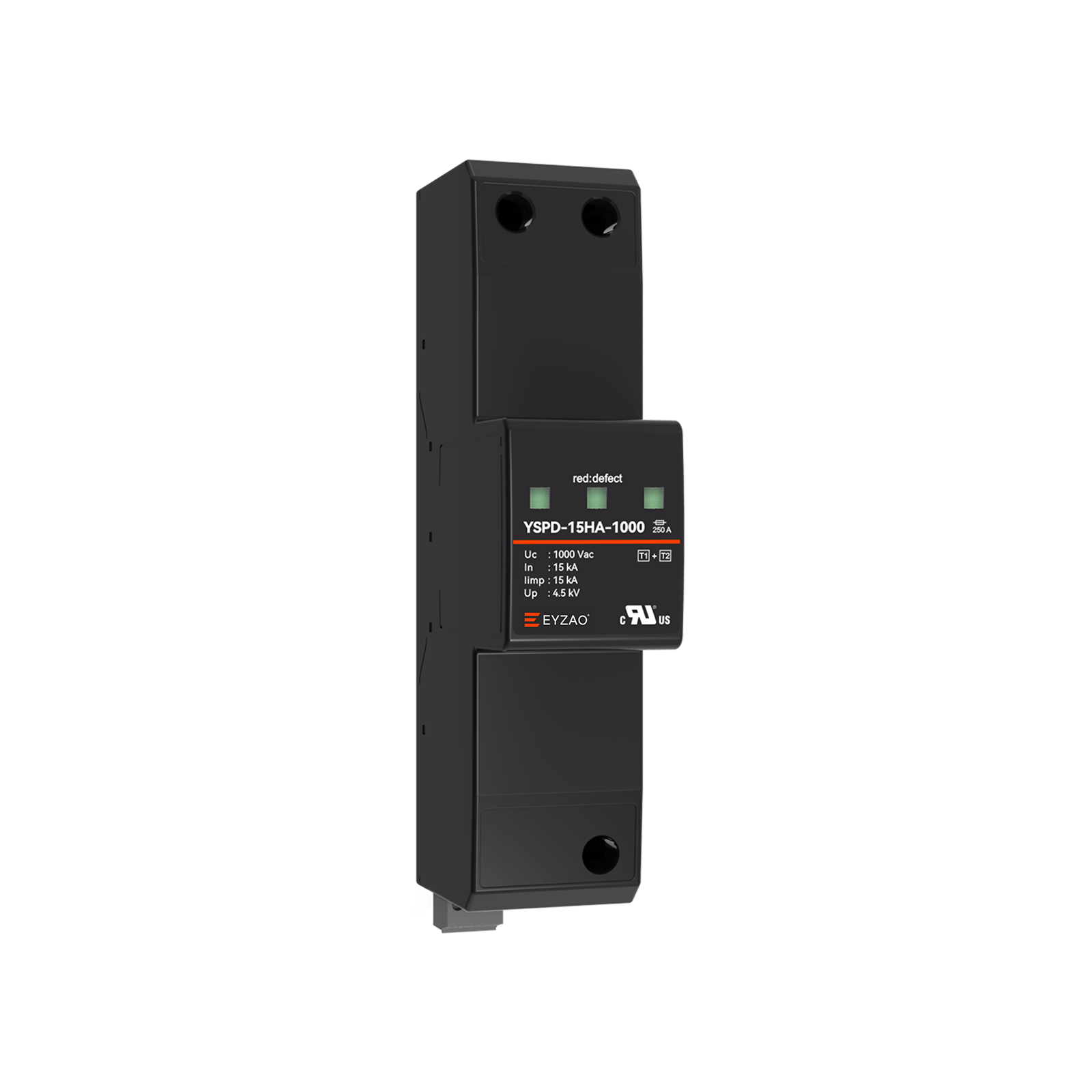

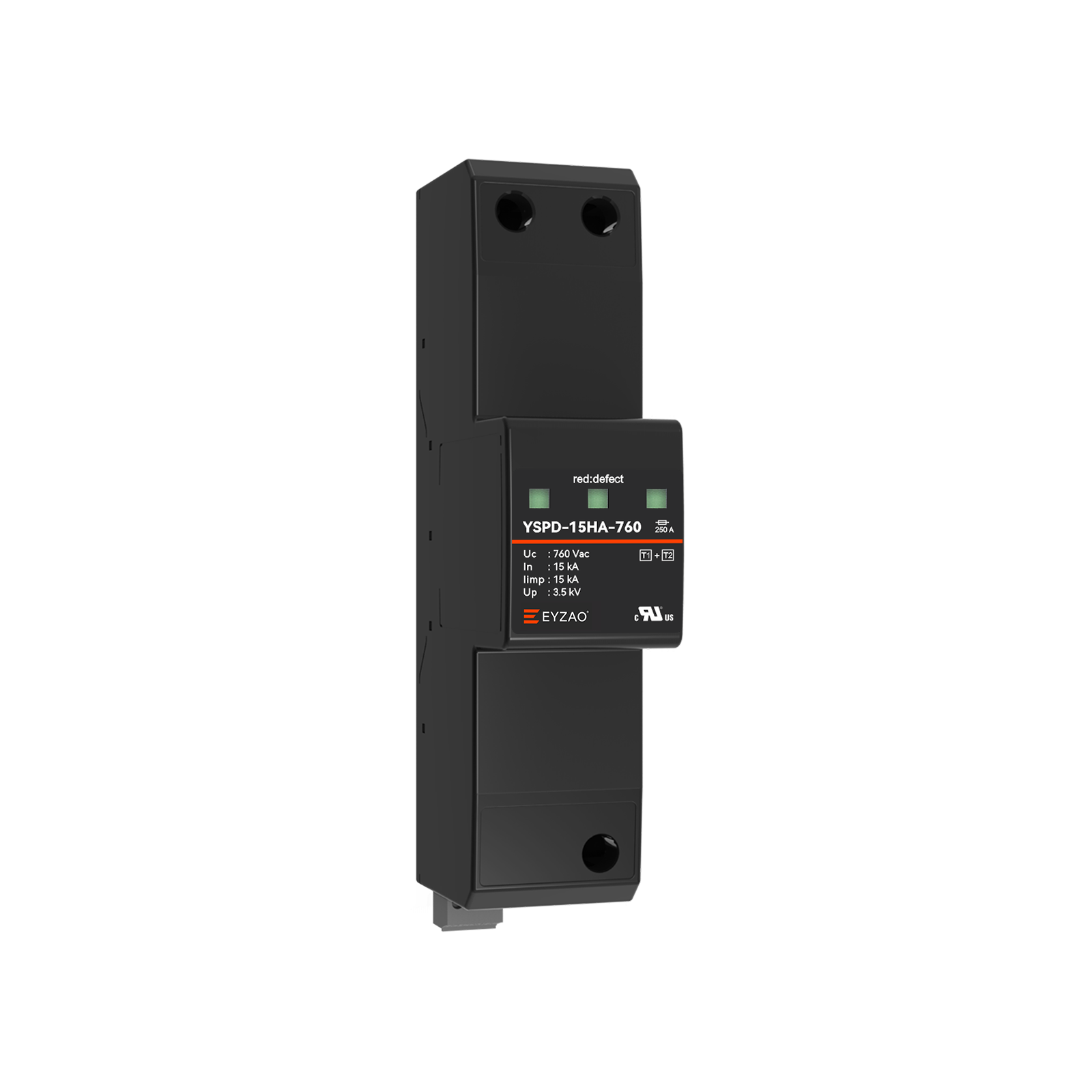

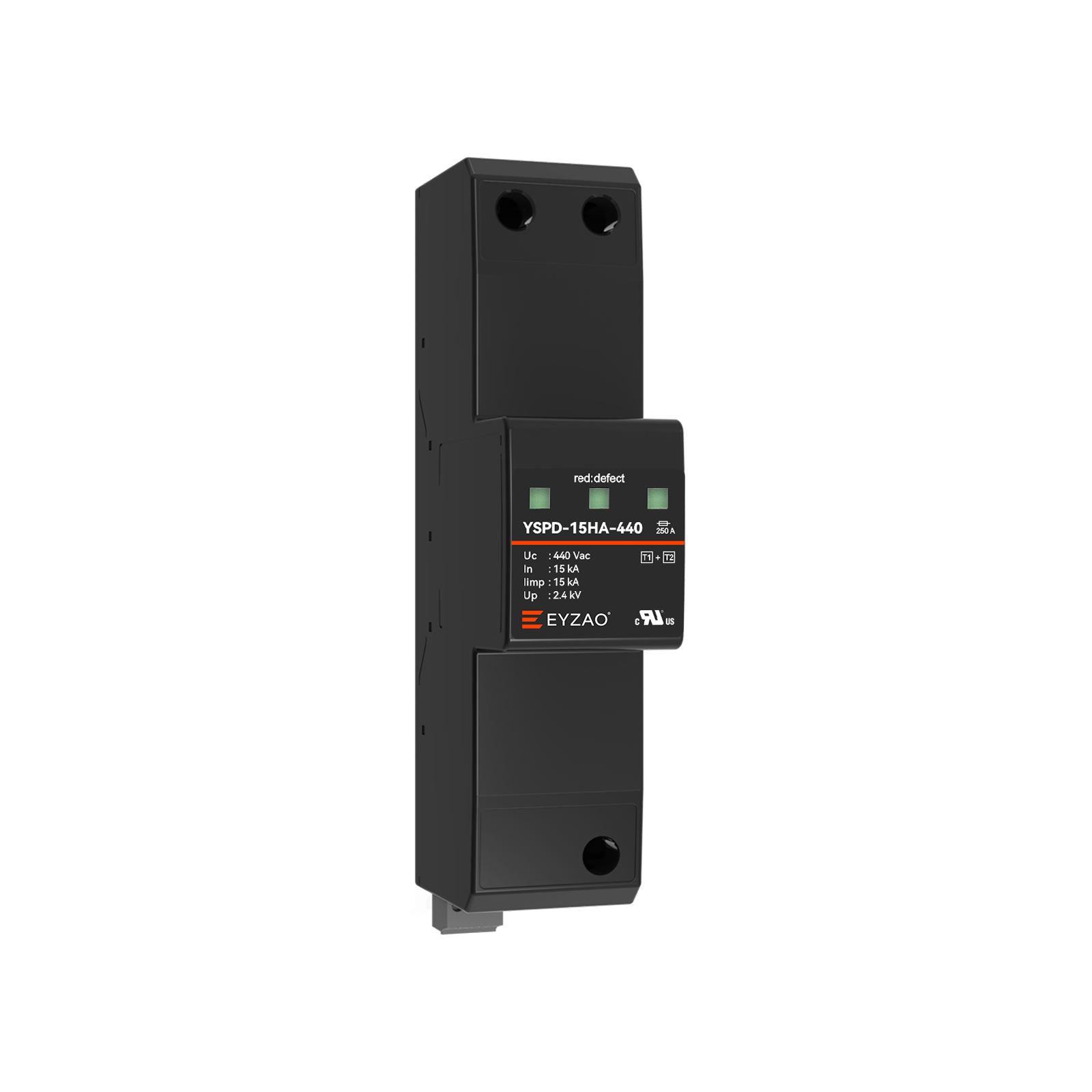

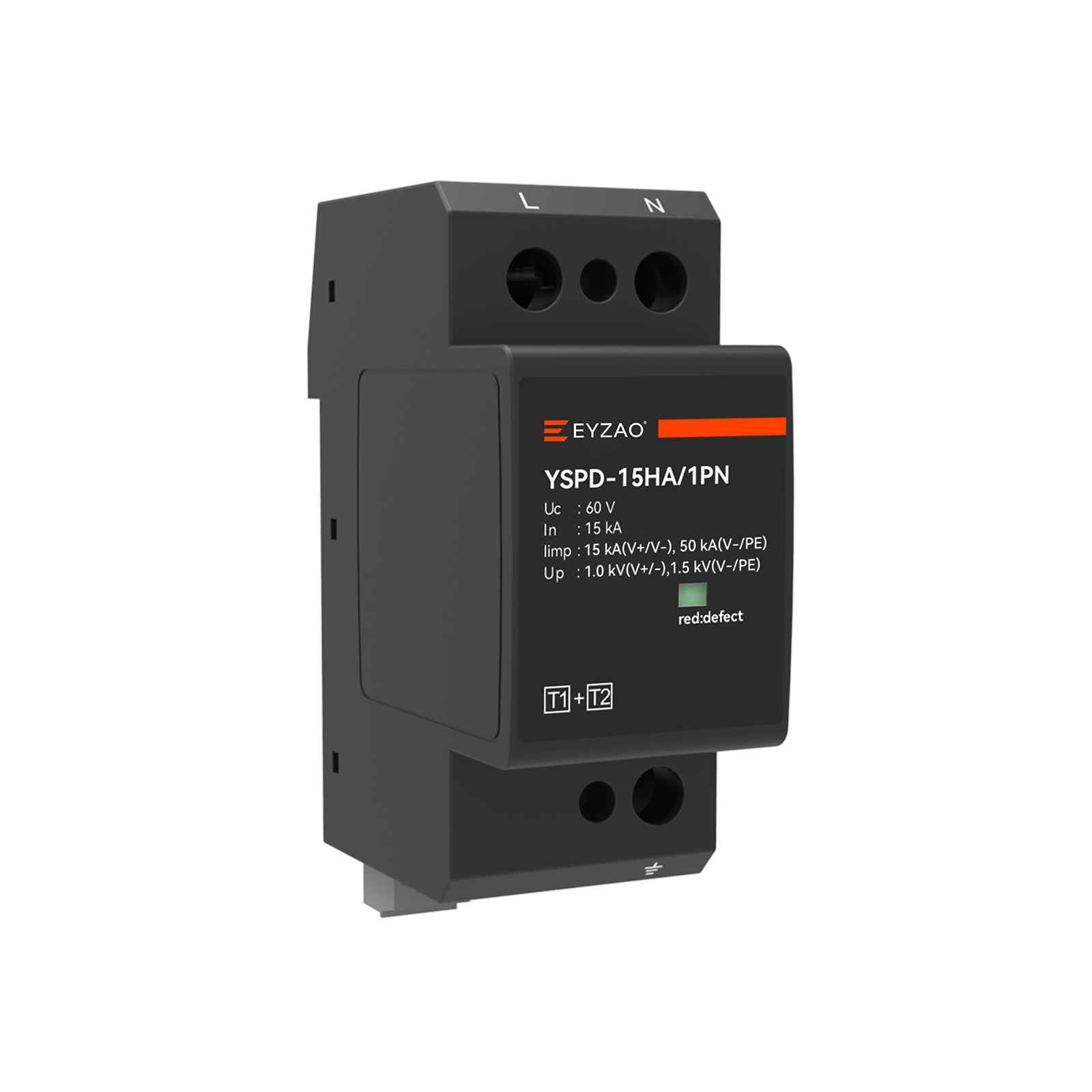

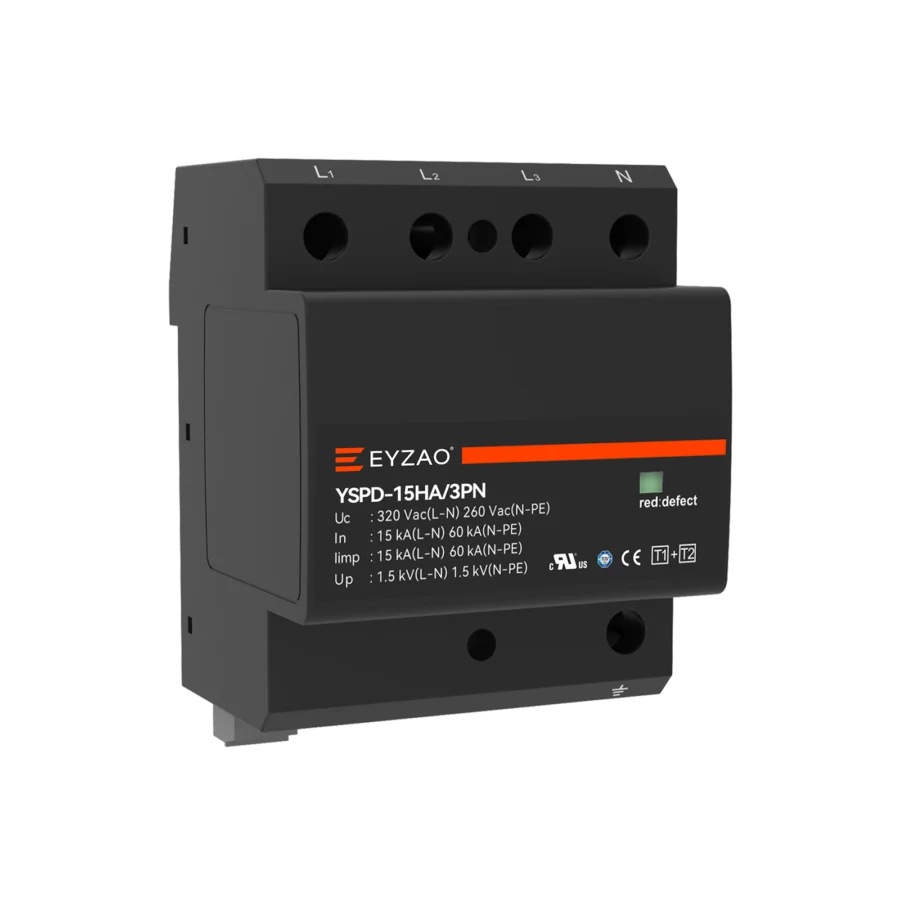

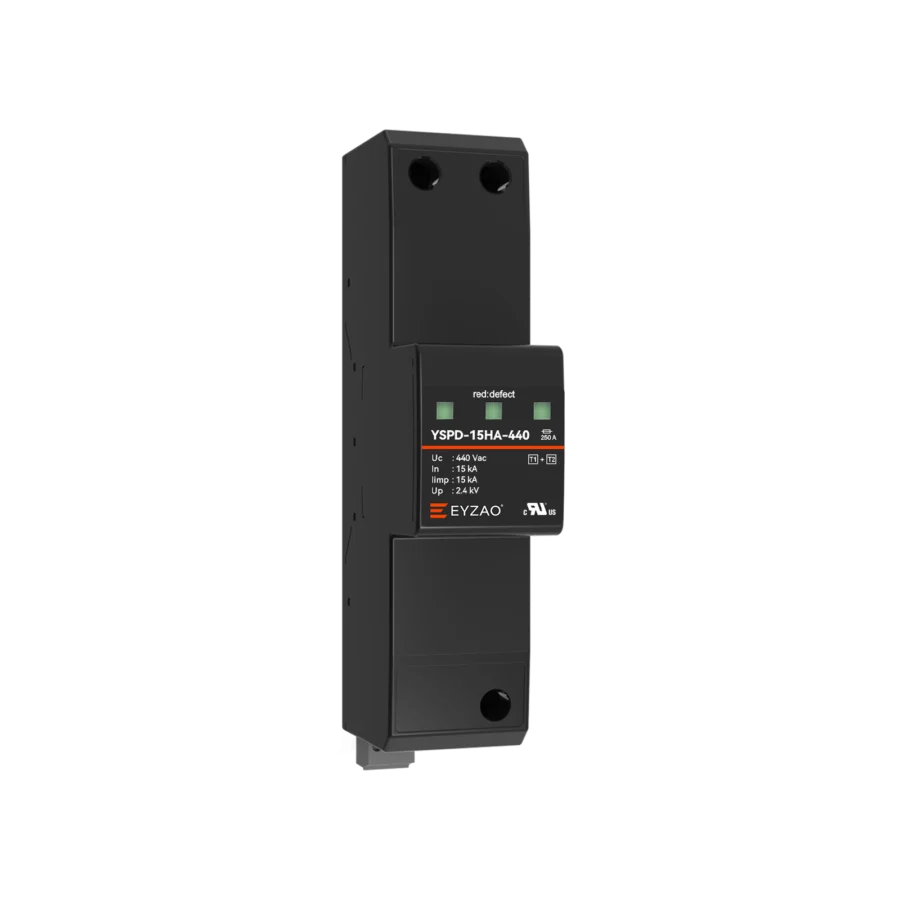

| Surge Model | YSPD-15HA-60-R | YSPD-15HA-320-R | YSPD-15HA-440-R | YSPD-15HA-760-R | YSPD-15HA-1000-R |
| Maximum Continuous Operating Voltage (Uc) | 60Vac | 320Vac | 440Vac | 760Vac | 1000Vac |
| Nominal discharge current (8/20 µs)(In) | 15kA |
||||
| Lightning inrush current (10/350 µs)(Iimp) | 15kA | ||||
| Voltage protection level (Up) | 1.0kV | 1.5kV | 2.4kV | 3.5kV | 4.5kV |
| Selectable poles |
1P/1PN | 1P/1PN/3P/3PN | 1P/2P/3P | ||
| Approvals | UL、CSA、TUV、CE、RoHS | ||||
