Class Composite Surge Protector, compliant with IEC 61643-1/11, EN61643-11 and GB/T 18802.11, suitable for low-voltage AC power distribution systems, for protection of LPZ0B-3 and subsequent partition interfaces, standard DIN rail mounting.

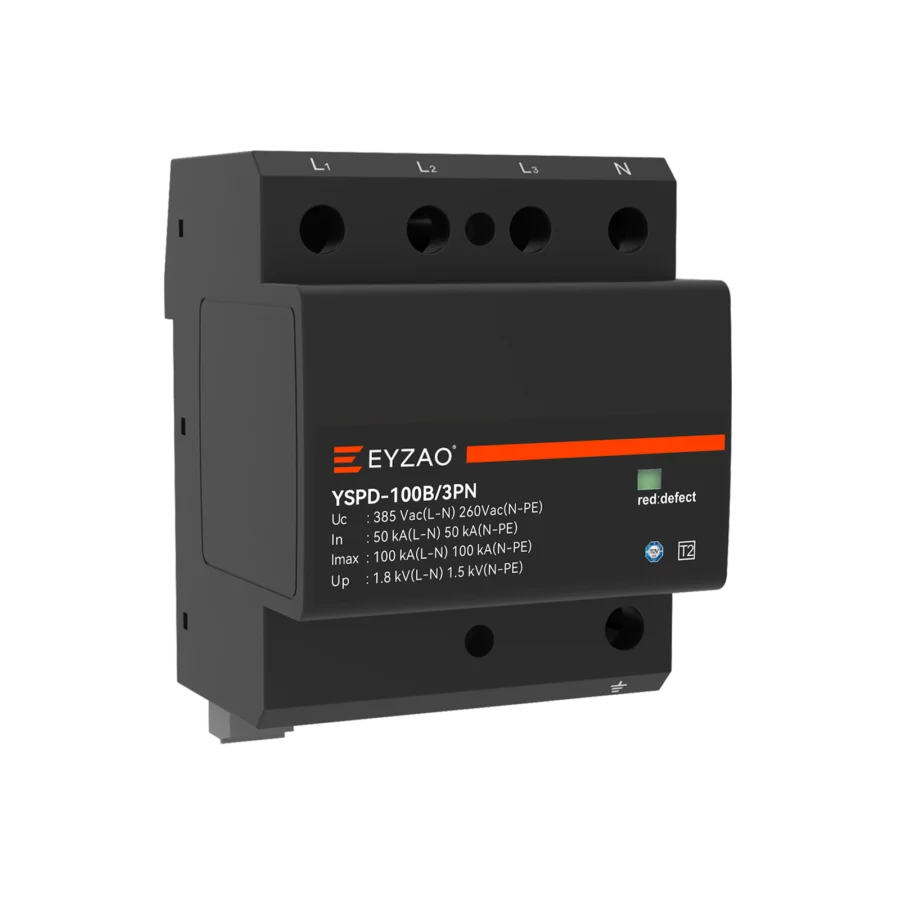

Class II 100kA Composite Surge Protector
- Main circuit tripping is safer
- No follow-through No leakage current
- Fault indication Remote signal alarm
- Low residual pressure and good protection
- TUV, RoHS certification
Get Your Free Quote
We will contact you within 24 hours.
| Surge Model | YSPD-100B-385-R |
| Maximum Continuous Operating Voltage(Uc) | 385Vac |
| Nominal Discharge Current(8/20μs)(In) | 50kA |
| Maximum discharge current(8/20μs)(Imax) | 100kA |
| Voltage Protection Level(Up) | 1.8 kV |
| Selectable poles | 1PN/3PN |
| Approvals | TUV、RoHS |
