Two-stage plug-in surge protector in accordance with IEC 61643-1/11, EN61643-11 and GB/T 18802.11 for AC or DC power supply and distribution systems for the protection of LPZ 0B-3 and subsequent zoning interfaces, standard DIN rail mounting.

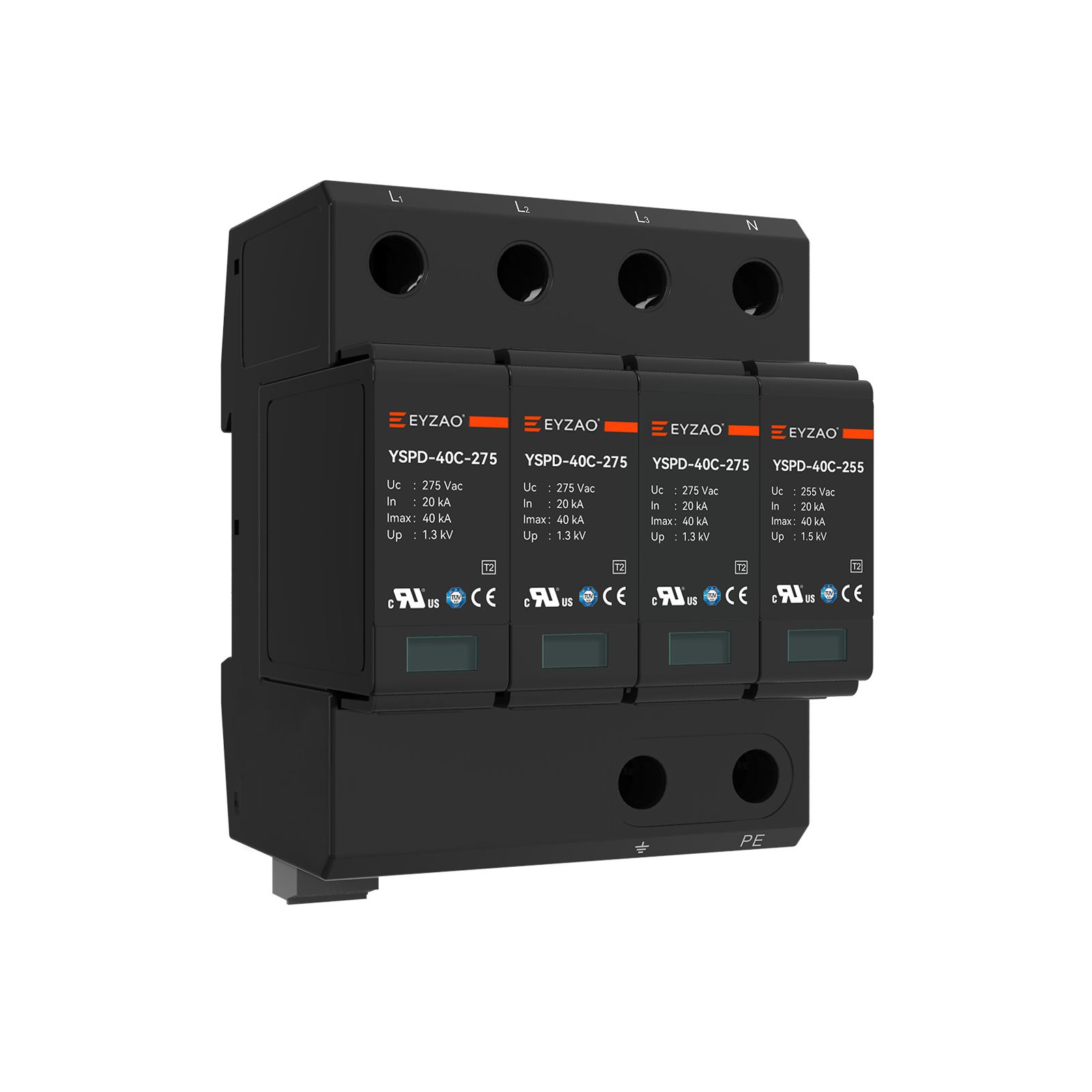

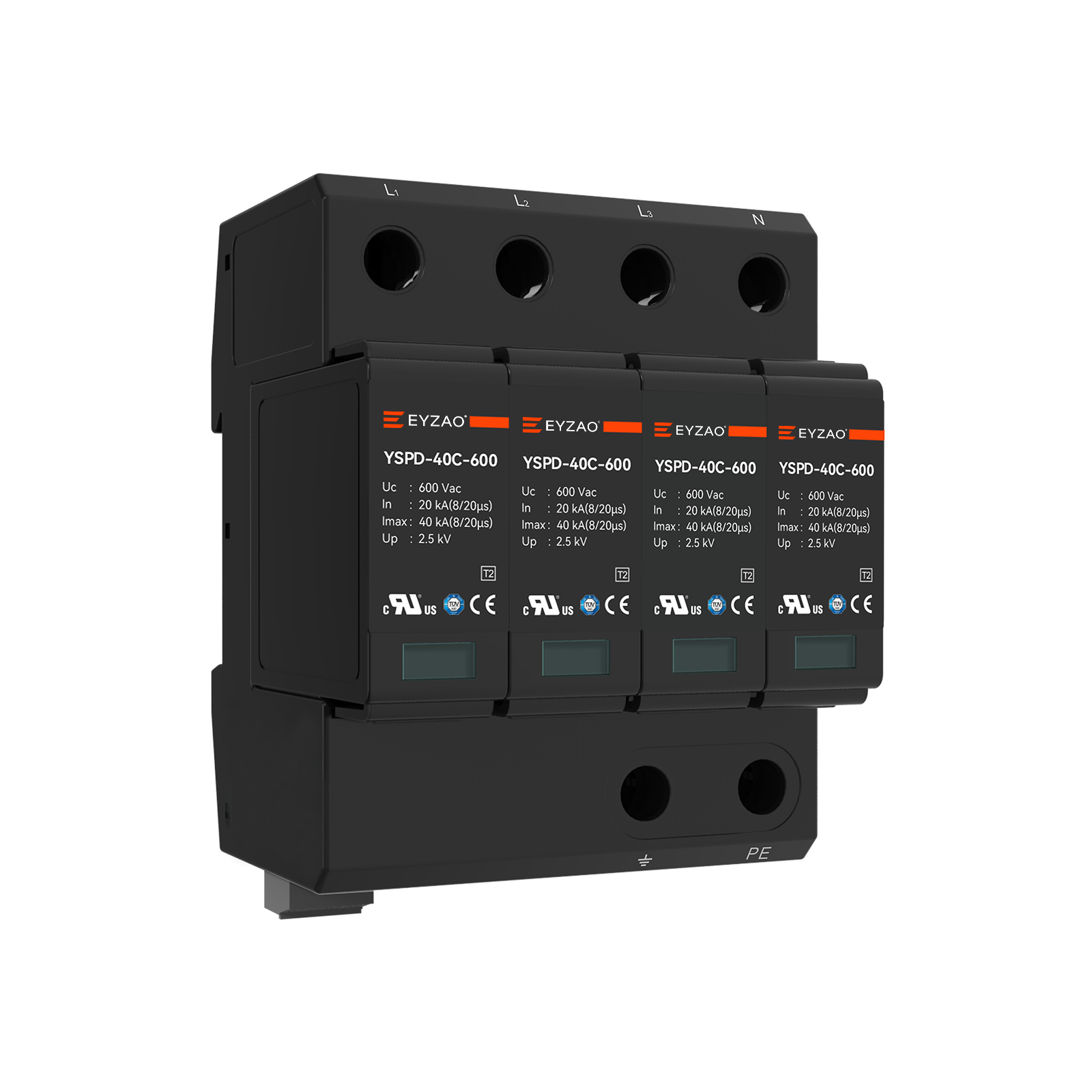

Class II 40kA Plug-in Surge Protector
- Plug-in replacement is convenient
- Unique arc interruption technology
- Fault indication Remote signal alarm
- Can directly protect terminal equipment
- UL, CSA, TUV, CE, RoHS, CQC Certification
Get Your Free Quote
We will contact you within 24 hours.

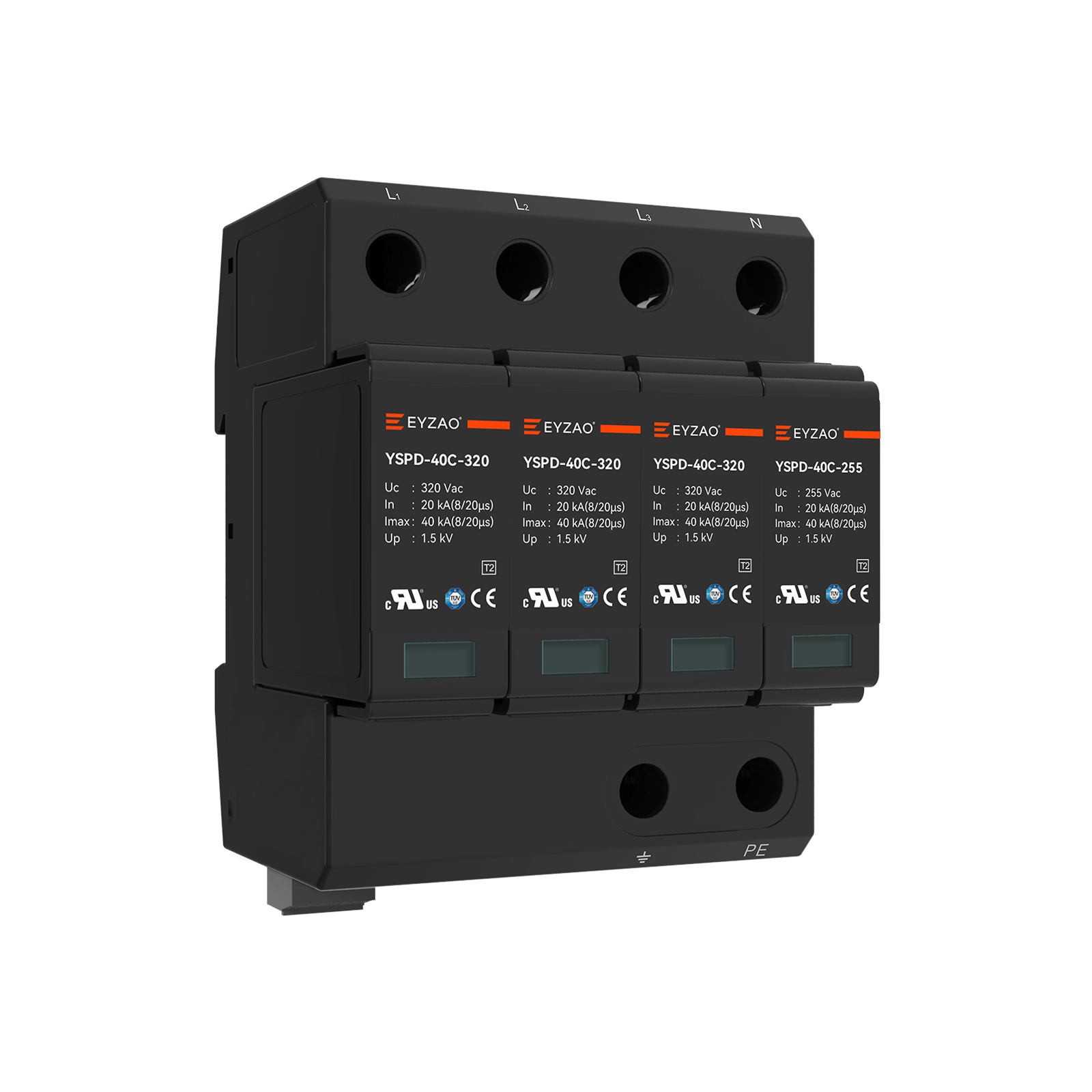

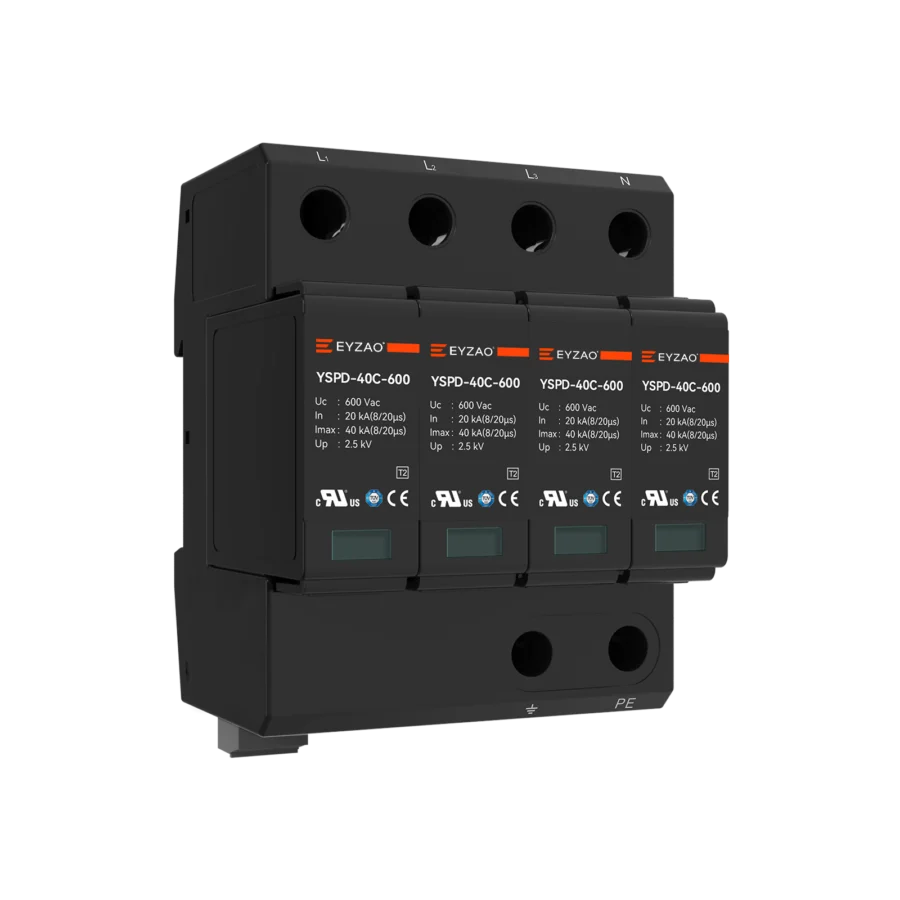

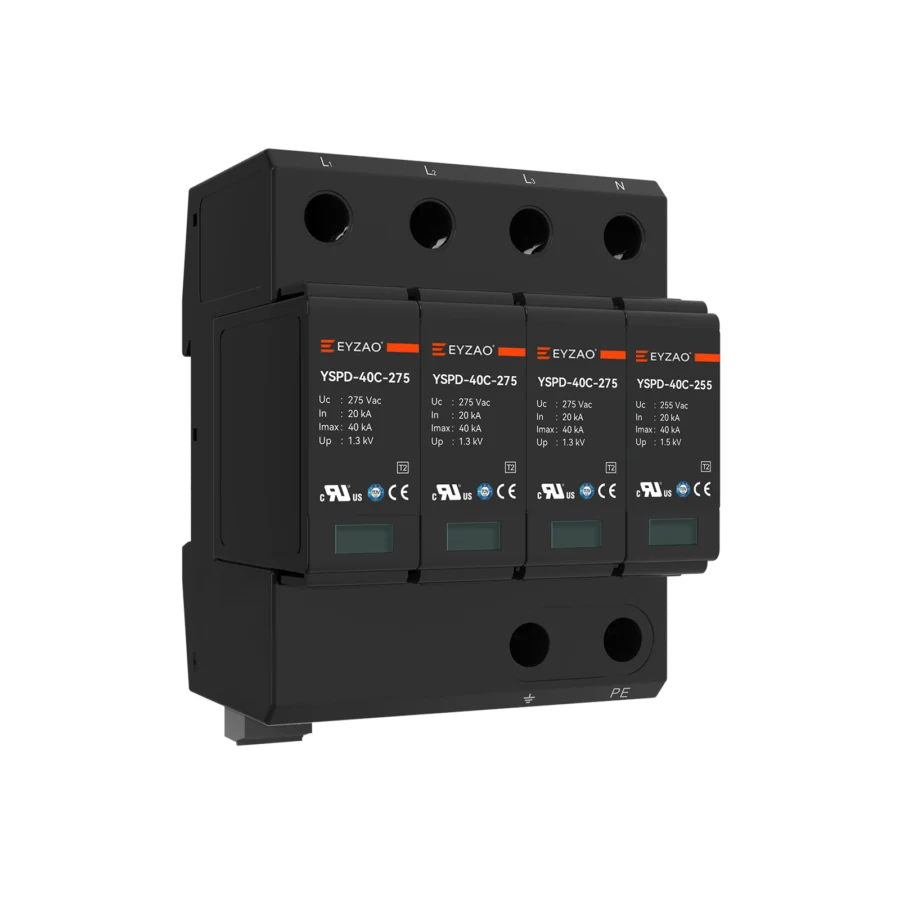

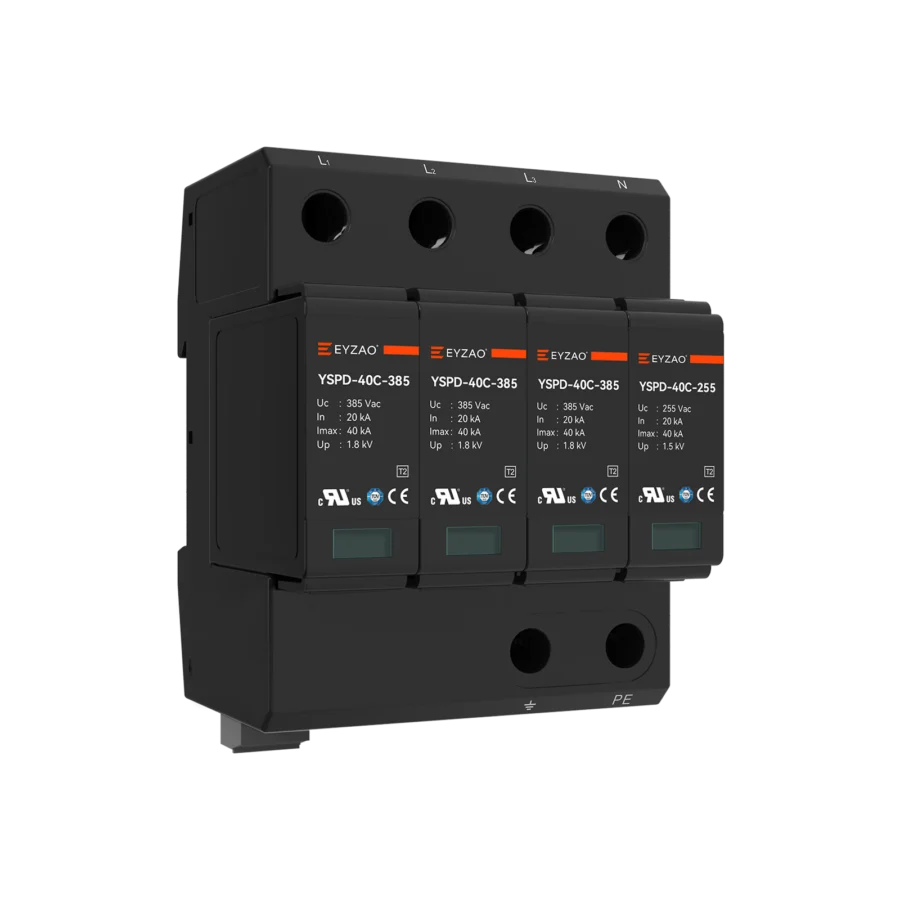

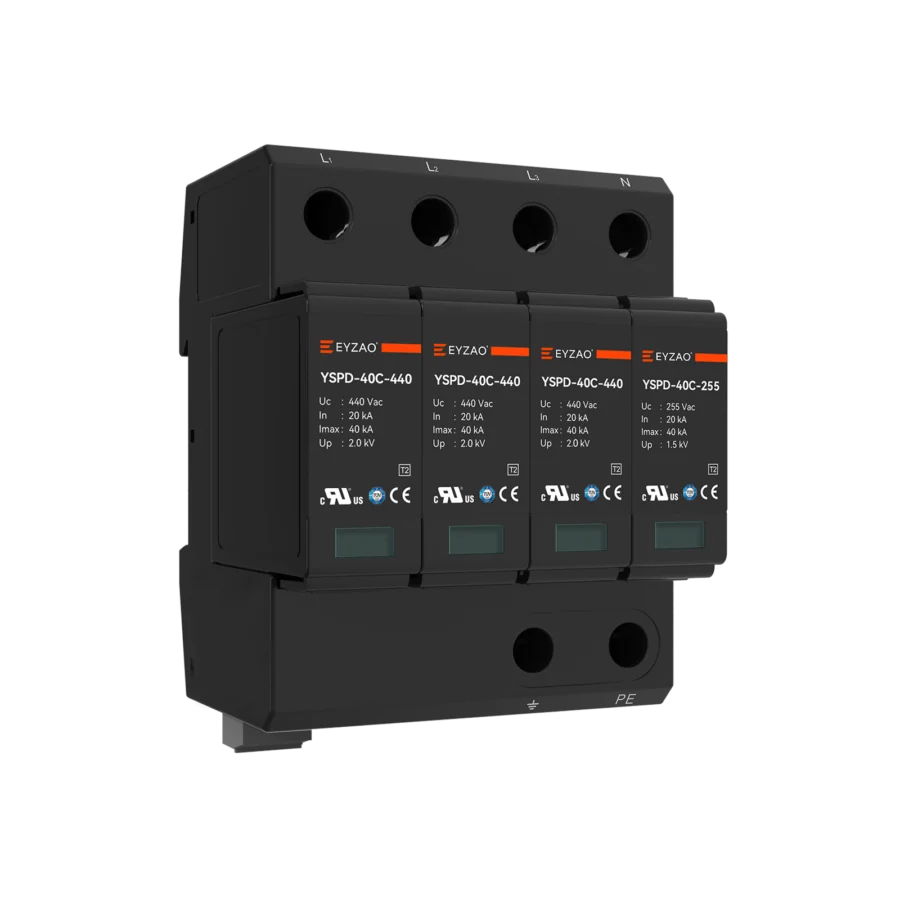

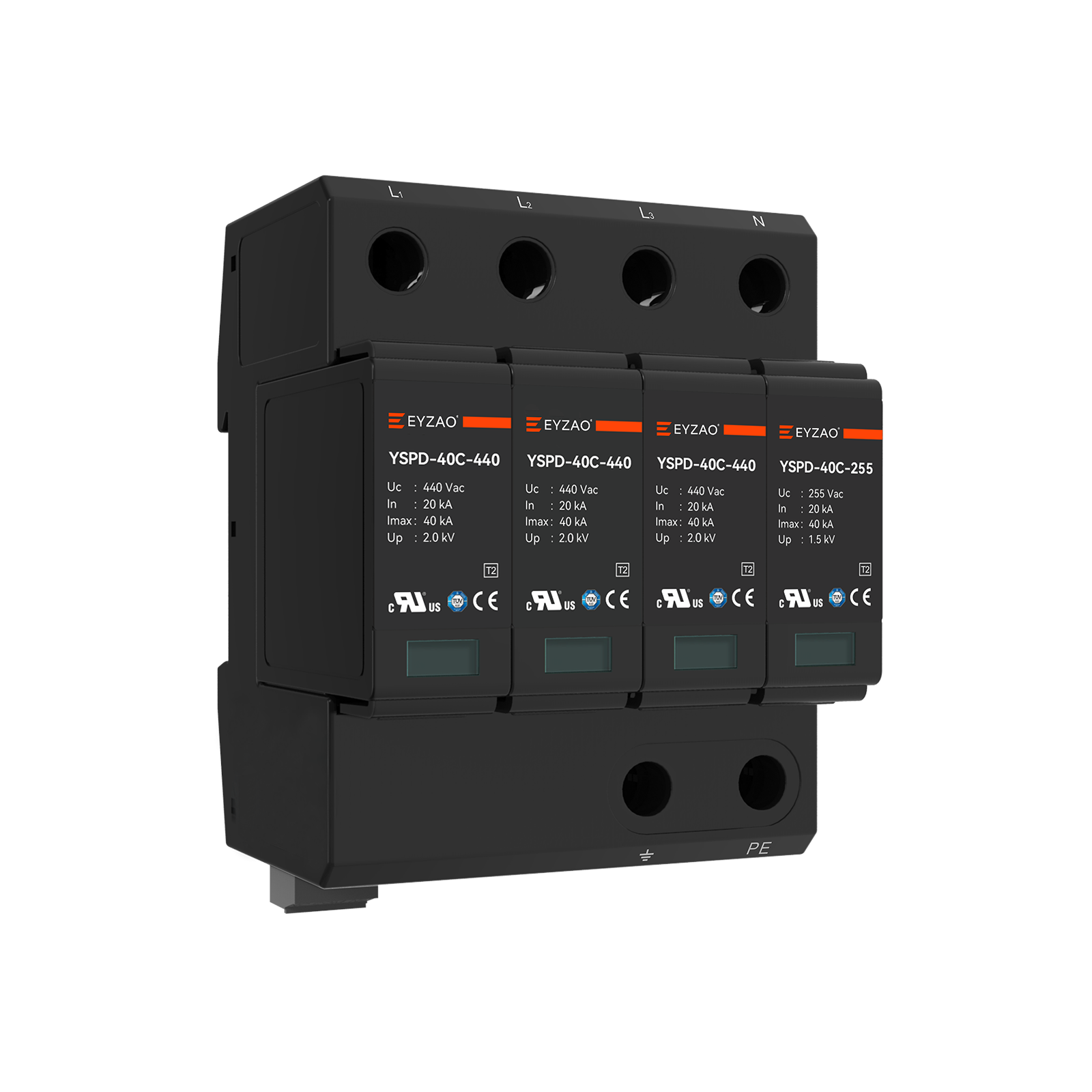

| Surge Model | YSPD-40C-275-R | YSPD-40C-320-R | YSPD-40C-385-R | YSPD-40C-440-R | YSPD-40C-600-R |
| Maximum Continuous Operating Voltage(UC) | 275Vac | 320Vac | 385Vac | 440Vac | 600Vac |
| Nominal Discharge Current(8/20µs)(In) | 20 kA | ||||
| Maximum discharge current(8/20µs)(Imax) | 40 kA | ||||
| Voltage Protection Level(UP) | 1.3kV | 1.5kV | 1.8kV | 2.0kV | 2.5kV |
| Selectable poles | 1P/1PN/2P/3P/3PN/4P | ||||
| Approvals | UL、CSA、TUV、CE、RoHS、CQC | ||||
