Two-stage plug-in surge protector in accordance with IEC 61643-1/11, EN61643-11 and GB/T 18802.11 for AC or DC power supply and distribution systems, wind and photovoltaic systems, for the protection of LPZ0B-3 and subsequent zoning interfaces, standard DIN rail mounting.
Class II 25kA Plug-in Surge Protector
- Plug-in replacement is convenient
- Unique arc interruption technology
- Fault indication Remote signal alarm
- Can directly protect terminal equipment
- UL, CSA, RoHS certification
Get Your Free Quote
We will contact you within 24 hours.

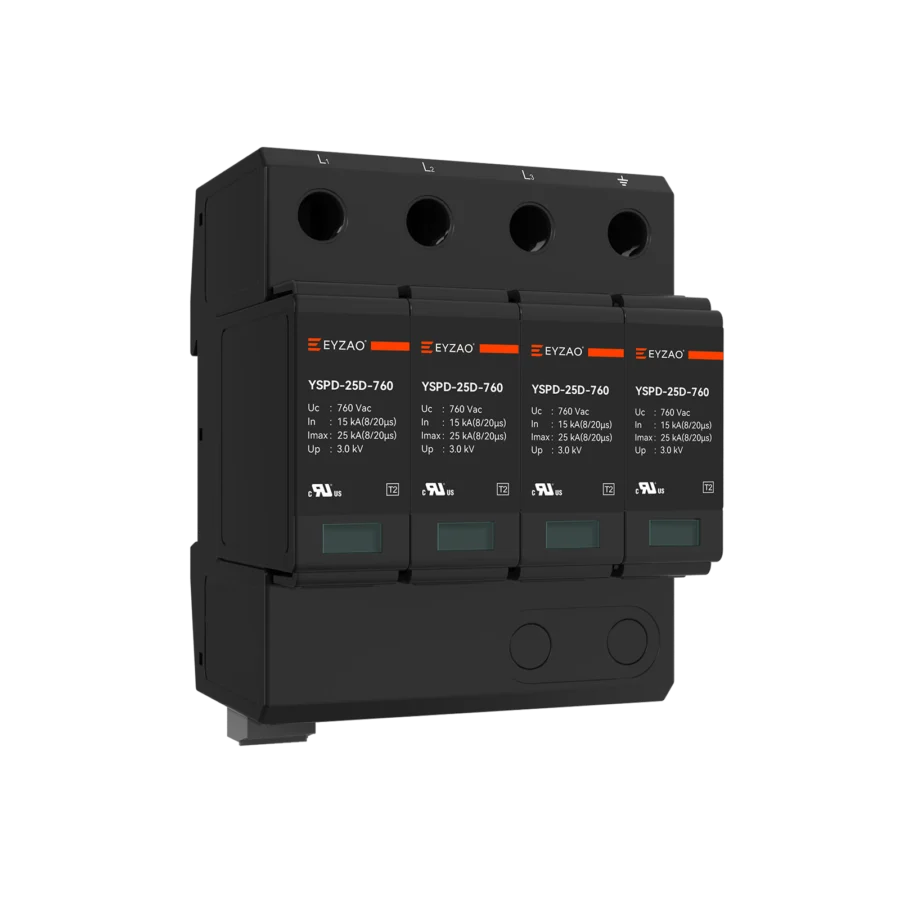

| Surge Model | YSPD-25D-760-R/3PN |
| Maximum Continuous Operating Voltage(Uc) | 760Vac |
| Nominal Discharge Current(8/20µs)(In) | 15kA |
| Maximum discharge current(8/20µs)(Imax) | 25kA |
| Voltage Protection Level(Up) | 3.0kV |
| Selectable poles | 1P/2P/3P/3PN/4P |
| Approvals | UL、CSA、RoHS |
