Lightning current recorder EFZ-1/3

Features:
  • Easy to install
  • Power supply options
  • Wired/wireless data transmission

Get Your Free Quote

We will contact you within 24 hours.

    EYZAO EFZ series lightning current recorder with high sensitivity to lightning response, small start-up threshold, large range of accurate data, lightning data is automatically stored, can be viewed on-site, can also be viewed remotely by wireless transmission; support for solar energy, batteries, utility and other power supply modes, can be used outdoors with explosion-proof certificates, long service life, small size and easy to install, no external wiring does not require special maintenance.

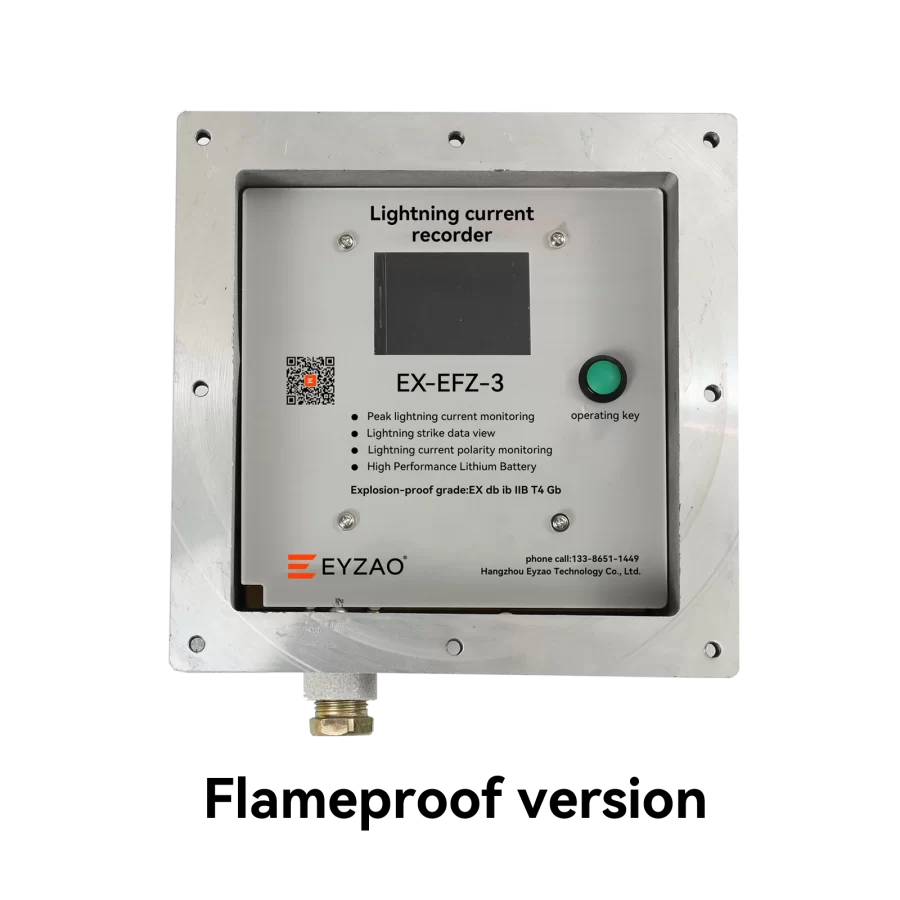

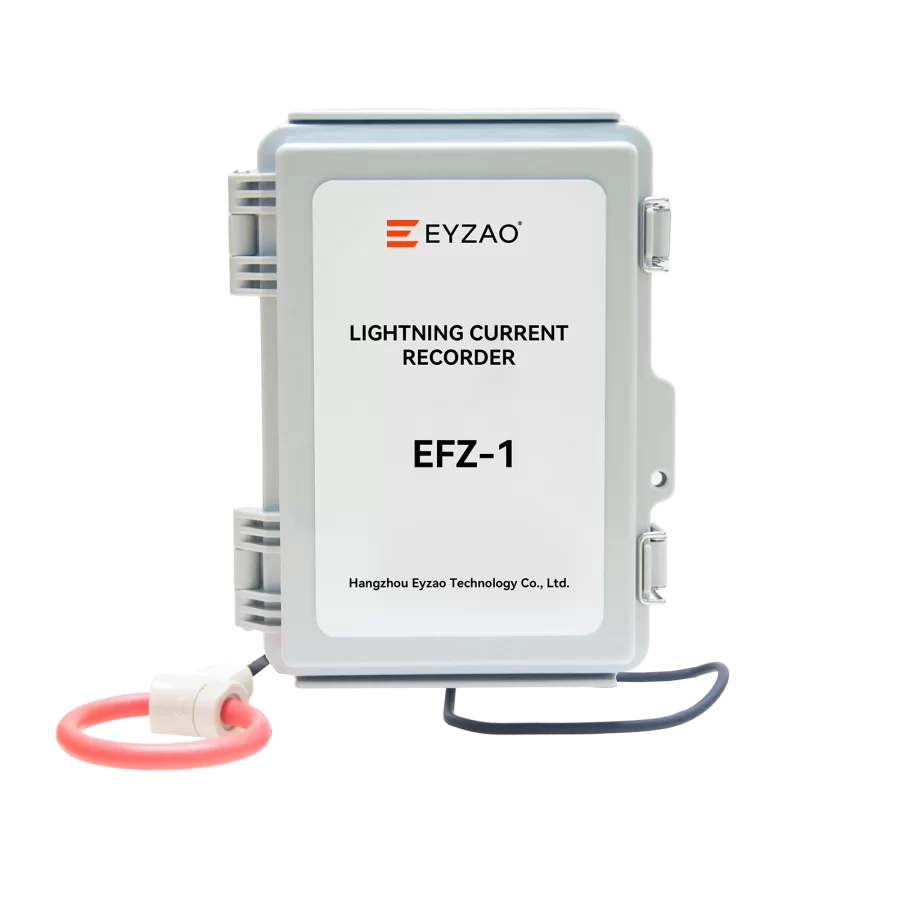

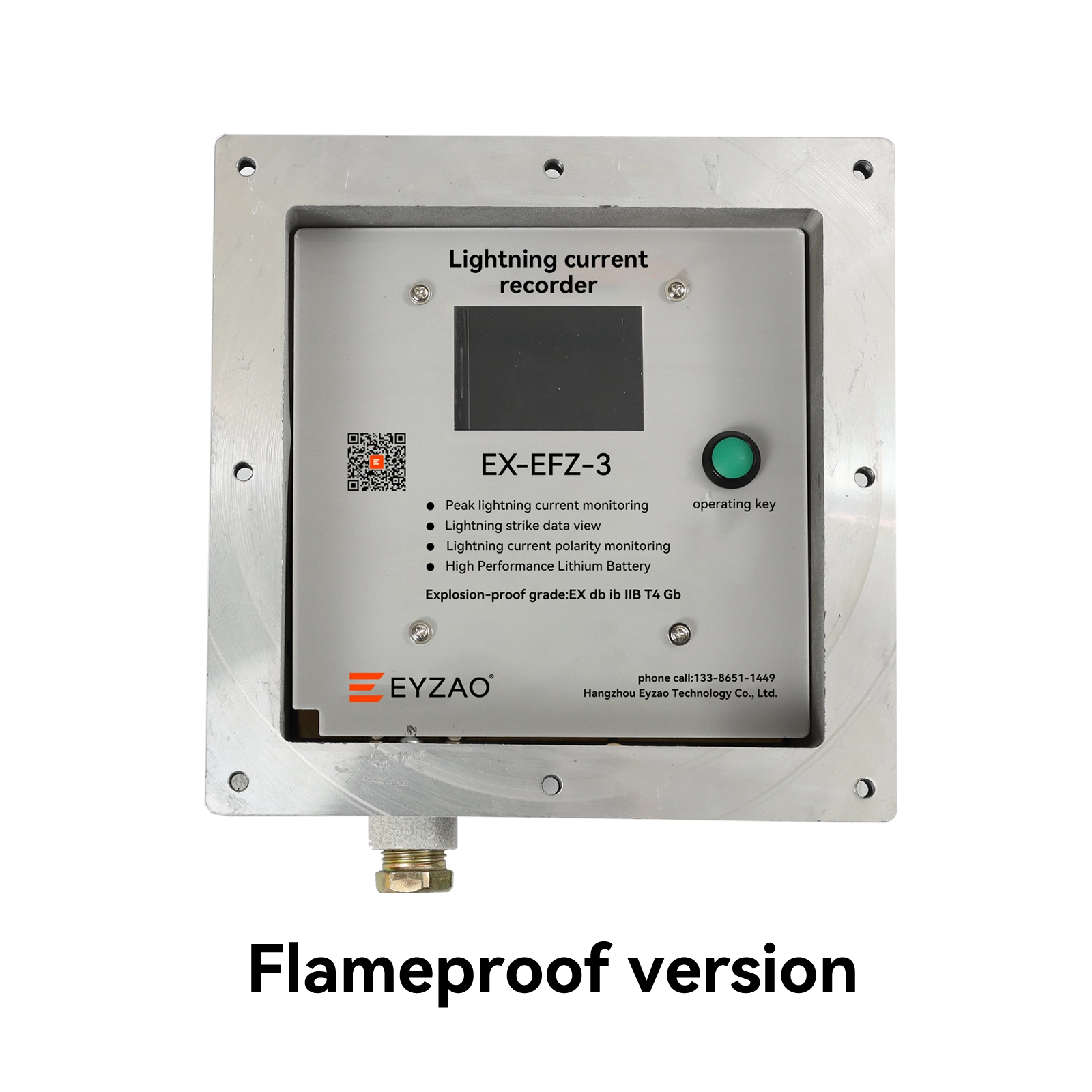

    Product Model Ex-EFZ-3(explosion proof) EFZ-1
    Measuring range ±3~±100kA,±0.5~±30kA
    Transmission method Wired transmission/wireless transmission (2G+NB-IoT mobile IoT card/4G)
    Data logging Peak lightning current, time of occurrence, frequency and polarity
    Data viewing LCD Local View/Software Platform View
    Data storage Local storage (999 entries)/Cloud storage
    Power supply method Utility/solar/high-performance lithium battery powered
    Installation U-clamps are fixed to the earth lead or to the wall.
    Protection class IP54 IP65
    Explosion-proof grade Ex db ib IIB T4 Gb
    Overall dimensions 200*200*130 mm 170*125*90 mm
    Product weight 2000g 700g
